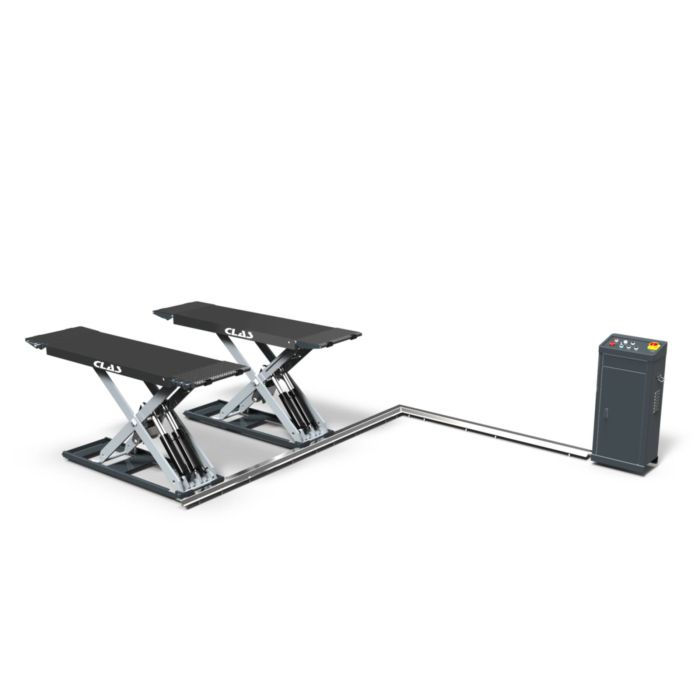

SCISSOR LIFT DUAL CYLINDER LOW RAISE 230V 3T
SKU
PE 6002M
Product values
View all features
Especially adapted to painting, bodywork and brake and tyre service activities.
Installation possibilities: floor-standing or floor built-in.
4,700.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | SCISSOR LIFT DUAL CYLINDER LOW RAISE 230V 3T |
|---|---|
| EAN code | 3701555307107 |
| Intro |
Especially adapted to painting, bodywork and brake and tyre service activities. Installation possibilities: floor-standing or floor built-in. |
| Text |
Ease of access: 105mm high lowered floor passage, lockable access ramps for extended lifting platforms. Up and down control by push buttons on control box. Working comfort: scissor control by double hydraulic master-slave system, synchronisation control by photocell, adjustable ramp spacing from 700 to 900mm, suitable for micro cars, vans and utility vehicles. Powerful lift: extended mechanical tilt lever system, for full power lift at the lowest point 105mm. |
| Product highlight | Ideal for small cars |
| Specifications |
Specifications: - lifting height : 105-960mm - lifting time: +/- 20s - lowering time: +/- 20s - track width/length: 530/1450-2036mm - system synchronization: photocell - drive power: 2.2kw - drive voltage: (3 ~) 400/50 V/Hz - maximum safety: double hydraulic safety system (without mechanical lock and compressed air), emergency lowering system in case of power failure, anti-crushing intermediate stop according to CE standards and sound signal - made in Europe |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Tension | 240V |
| Product weight | 610.00 kg |
| Maximum load (T) | 3.00 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6002M-1 - SCISSOR LIFT DUAL CYLINDER LOW RAISE 230V 3T PACK. 1/2 1 x PE 6002M-2 - SCISSOR LIFT DUAL CYLINDER LOW RAISE 230V 3T PACK. 2/2 |
