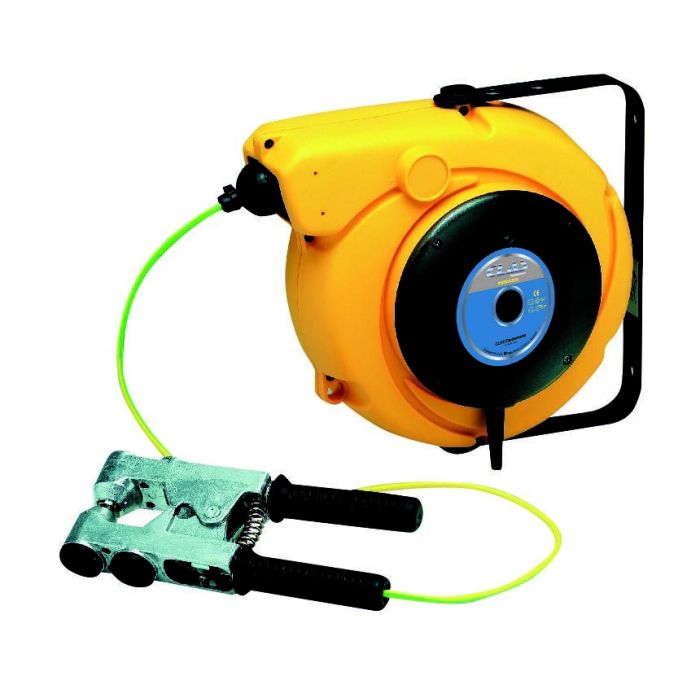

REEL 1x6mm2 FOR EARTHING
Characteristics
Item name | REEL 1x6mm2 FOR EARTHING |
---|---|
EAN code | 3700461419256 |
Product highlight | Anti-deflagration plier ATEX 94/9/CE |
Specifications |
Reel specifications: - the reel is not flameproof - IP42 - nominal current: 20A - insulation voltage: 2.5kV - single pole cable 1x6mm2 H05V-F colour yellow/green - stop device every 50cm Clip specifications:. - clip version II2GD Ex d IIC T6 - ex tD A21/IP65/ Temp 85°C - in conformity with standard EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1 - in conformity with the directive CESI 03 ATEX 94/9/CE - suitable for use in potentially explosive atmospheres in presence of IIC group gas and combustible dusts - provided with reopening-anti-tearing system -Reliable, robust, easy to manipulate and simple to use - insulation voltage 3kV - nominal current 10A - clip opening 3-20mm - clip size 250x110x35mm |
Warranty period | 2 years |
Power | 1800W |
Cable length | 14.00 m |
Product weight | 6.50 kg |
Tariff code | Tariff Normal (TN) |
Warranty Procedure | DIAGNOSTIC |
