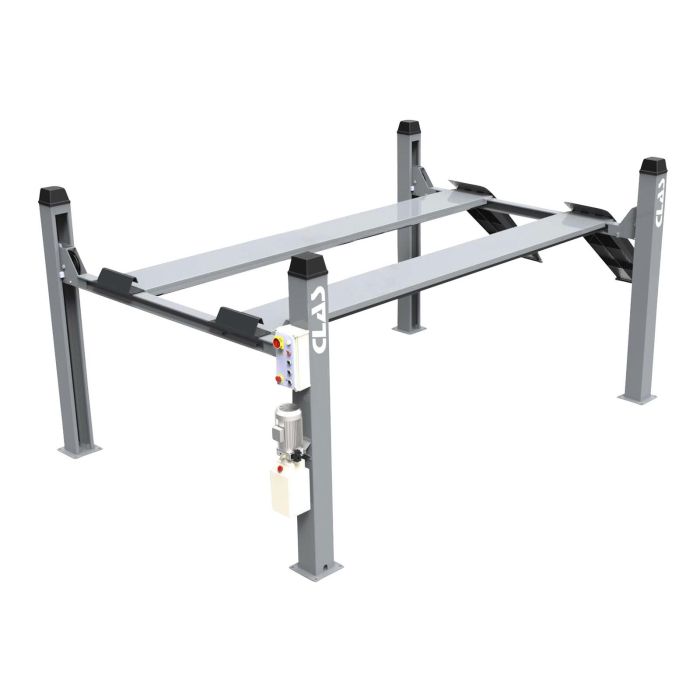

4 COLUMNS POST LIFT FLAT TRACK 400V 5.5T
SKU
PE 4000T
Product values
View all features
Suitable for mechanical operations on cars, trucks, motorhomes and construction equipment.
9,900.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | 4 COLUMNS POST LIFT FLAT TRACK 400V 5.5T |
|---|---|
| EAN code | 3701555307060 |
| Intro | Suitable for mechanical operations on cars, trucks, motorhomes and construction equipment. |
| Text |
Electro-hydraulic post lift. Working comfort: one-piece access ramps, quick and easy vehicle positioning with low ground clearance, allows for quick repair or inspection, 5.19m long paths Equipped with guides for optional lifting crossbeam. |
| Product highlight | Camping cars and vans |
| Specifications |
Specifications: - lifting height : 196-1846mm - lifting time : +/- 45s - lowering time: +/- 45s - width/length of runways: 490 /5190mm - distance between the adjustable tracks: 800-1100mm - air supply 8bar - drive power: 2.2kW - Drive voltage: (3 ~) 400/50V/Hz - concrete strength/quality: 200mm-C20/25 - maximum safety: single-cylinder lift, 4-cable drive, pneumatic release of safety catches, safety system in case of cable breakage, emergency lowering system in case of power failure, intermediate stop and sound signal - made in Europe - Epoxy paint |
| Options |
Options : - PE0008: 1600mm boom extension - PE7000: 3T hydropneumatic lifting crossbar |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Tension | 400V |
| Product weight | 1,400.00 kg |
| Maximum load (T) | 5.50 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 4000T-1 - 4 COLUMNS POST LIFT FLAT TRACK 400V 5.5T PACK. 1/3 1 x PE 4000T-2 - 4 COLUMNS POST LIFT FLAT TRACK 400V 5.5T PACK. 2/3 1 x PE 4000T-3 - 4 COLUMNS POST LIFT FLAT TRACK 400V 5.5T PACK. 3/3 |
