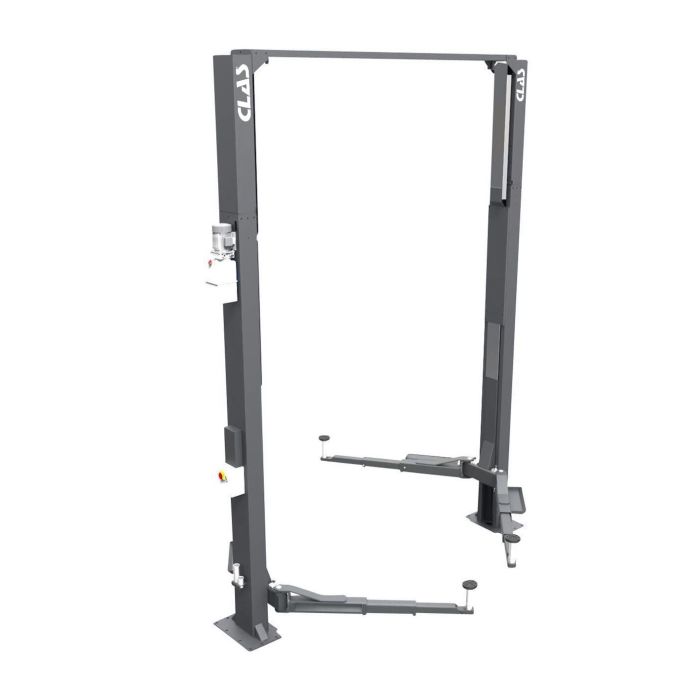

2 COLUMNS SYMETRIC POST LIFT 400V 5T HIGH PASSAGE 4470mm 2.6Kw
SKU
PE 2006T
Product values
View all features
Especially adapted to repair activities on commercial vehicles and 4x4.
10,700.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | 2 COLUMNS SYMETRIC POST LIFT 400V 5T HIGH PASSAGE 4470mm 2.6Kw |
|---|---|
| EAN code | 3701555307015 |
| Intro | Especially adapted to repair activities on commercial vehicles and 4x4. |
| Text |
Electro-hydraulic post lift. Hoses and cables pass through the top for optimum working comfort, allowing free access under the vehicle for equipment (cylinders, oil recovery system, etc.), making it easier to clean the workshop. Hydraulic unit with fast up and down (+/- 50s). Adjustment possibility, equipped with a position securing device for precise intervention, gearbox assembly, nut alignment... Multiple lifting capacities thanks to the telescopic arms in symmetrical 3-stage version from 860 to 1700mm for precise vehicle lifting. Adjustable pads on 55mm stroke screw equipped with 70mm and 160mm extension. Electromagnetic unlocking of the safety catches, overload safety and hose rupture. Hydraulic synchronization system. Made in Europe, powder coated. |
| Product highlight | Height adjustable to the millimeter |
| Specifications |
Specifications: - lifting height : 95-2050mm - lifting time : +/- 50s - lowering time : +/- 50s - driving power: 2.6kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - adjustable buffers on screw stroke 55mm (+ raised 70 and 160mm) - electro-magnetic unlocking of the safety notches - bevelled columns for large door openings - overload and hose rupture safety - semi-automatic hydraulic system synchronization - made in Europe - epoxy paint |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2600W |
| Tension | 400V |
| Product weight | 1,060.00 kg |
| Maximum load (T) | 5.00 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature | 1 x PE 2006T-1 - 2 COLUMNS SYM. POST LIFT 400V 5T HIGH PASSAGE 4470mm 2.6Kw PACK. 1/1 |
