2 COLUMNS POST LIFT 230V 4T HIGH PASSAGE 3876mm 2.2Kw
SKU
PE 2004M
Product values
View all features

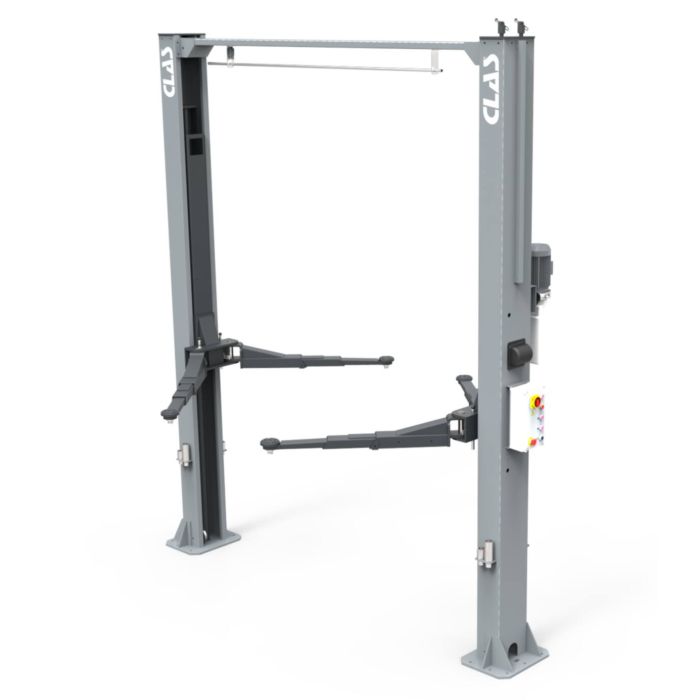

Electro-hydraulic post lift.
Push cylinder on cart, without chain.
Hoses and cables pass through the top for optimum working comfort, allowing free access under the vehicle for equipment (cylinders, oil recovery system, etc.), making it easier to clean the workshop.
Multiple lifting capacities thanks to the telescopic arms in asymmetrical version (front 3 stages from 560 to 995mm, rear long 2 stages from 660 to 1210mm) allowing precise lifting of low or utility vehicles.
Adjustable pads on 55mm stroke screw equipped with 70mm extension.
Electromagnetic unlocking of the safety notches, overload safety and hose rupture.
System synchronisation: by cable.
Cylinder, chain and cable protection strip included on each column.
Particularly suitable for repair activities.
European origin, powder coated.
4,950.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | 2 COLUMNS POST LIFT 230V 4T HIGH PASSAGE 3876mm 2.2Kw |
|---|---|
| EAN code | 3701555306933 |
| Text |
Electro-hydraulic post lift. Push cylinder on cart, without chain. Hoses and cables pass through the top for optimum working comfort, allowing free access under the vehicle for equipment (cylinders, oil recovery system, etc.), making it easier to clean the workshop. Multiple lifting capacities thanks to the telescopic arms in asymmetrical version (front 3 stages from 560 to 995mm, rear long 2 stages from 660 to 1210mm) allowing precise lifting of low or utility vehicles. Adjustable pads on 55mm stroke screw equipped with 70mm extension. Electromagnetic unlocking of the safety notches, overload safety and hose rupture. System synchronisation: by cable. Cylinder, chain and cable protection strip included on each column. Particularly suitable for repair activities. European origin, powder coated. |
| Specifications |
Specifications: - lifting height : 105-1890mm - lifting time : +/- 40s - lowering time : +/- 40s - driving power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - adjustable buffers on screw 55mm stroke (+ 70mm extension) - electromagnetic unlocking of safety catches - overload and pipe rupture safety - system synchronization: by cable. - protection strip for cylinder, chain and cables included on each column - made in Europe - epoxy paint |
| Options |
Options : - PE0007 : Jeux de rehausses Mercedes / Iveco 105-135mm |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Tension | 240V |
| Product weight | 820.00 kg |
| Maximum load (T) | 4.00 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 2004M-1 - 2 COLUMNS POST LIFT 230V 4T HIGH PASSAGE 3876mm 2.2Kw PACK. 1/2 1 x PE 2004M-2 - 2 COLUMNS POST LIFT 230V 4T HIGH PASSAGE 3876mm 2.2Kw PACK. 2/2 |
