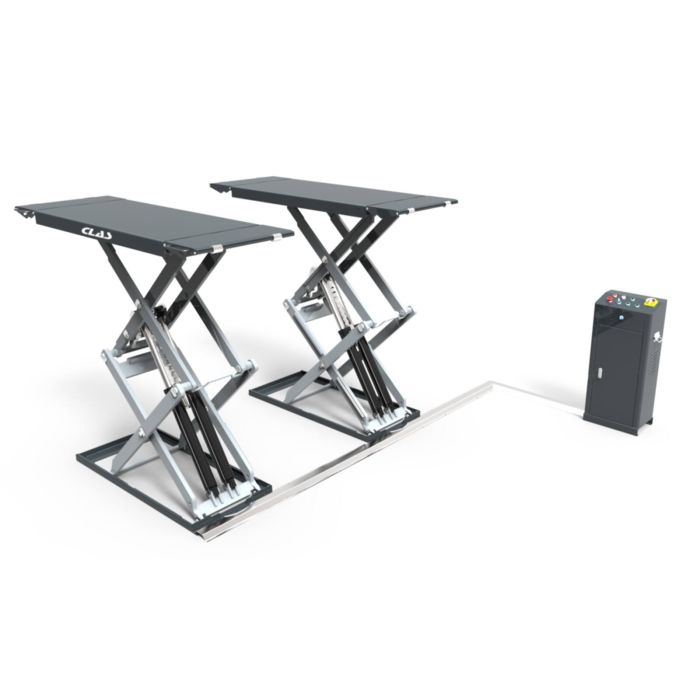

DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T
SKU
PE 6005T
Product values
View all features
Especially adapted to painting, bodywork and brake and tyre service activities.
Installation possibilities: floor-standing or floor built-in.
7,150.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T |
|---|---|
| EAN code | 3701555307176 |
| Intro |
Especially adapted to painting, bodywork and brake and tyre service activities. Installation possibilities: floor-standing or floor built-in. |
| Text |
Ease of access: 100mm high lowered floor passage, lockable access ramps for extended lifting platforms Up and down control by push buttons on control console Powerful lift: Extended mechanical tilt lever system, for full power lift at the lowest point 100mm Working comfort: scissors control by double hydraulic master-slave systems; synchronization control by photocell, with air supplied mechanical lock (rack and pinion), secures the position for precise intervention, gearbox assembly, nut alignment... Maximum safety: emergency descent system in case of power failure, intermediate anti-crushing stop to CE standards and audible signal. European origin. |
| Product highlight | Maintaining position mechanical safety |
| Specifications |
Specifications: - lifting height : 100-1950mm - lifting time : +/- 40s - lowering time: +/- 35s - width/length of tracks: 650/1420-2000mm - system synchronization: photo cell - width/length of floor required for installation: 2000/2030mm - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - Maximum safety: emergency lowering system in case of power failure, anti-crushing intermediate stop according to CE standards and sound signal - made in Europe |
| Contents | Delivered with 4 pads h.60mm |
| Options |
Options : - PE0001: SUV kit for scissor lifts |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Tension | 400V |
| Product weight | 860.00 kg |
| Maximum load (T) | 3.00 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6005T-1 - DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T PACK. 1/2 1 x PE 6005T-2 - DOUBLE SCISSOR LIFT DUAL CYLINDER WITH MECHANIC LOCK 400V 3T PACK. 2/2 |
