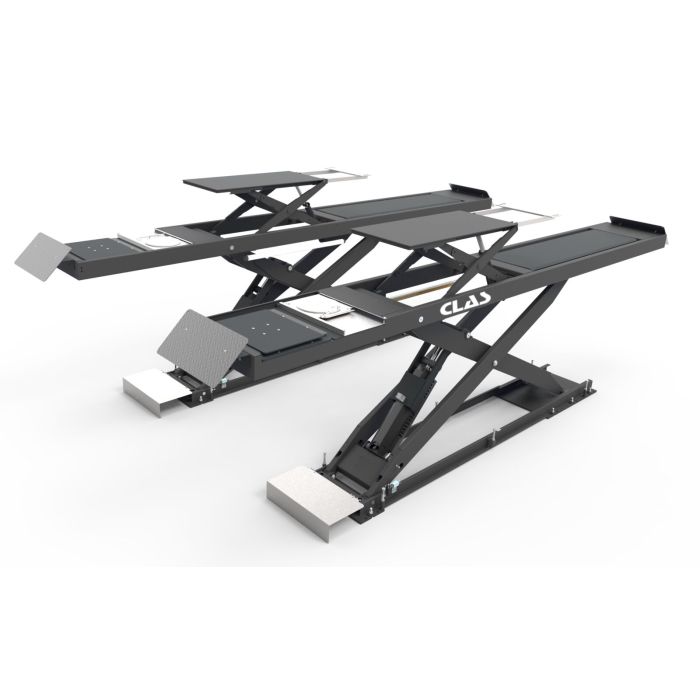

SCISSOR LIFT 5T AUXILIARY LIFT 3.5T PACK. 1/1
SKU
PE 6007T
Product values
View all features
Especially adapted for technical inspection, geometries, repair and adjustment of headlights.
Installation possibilities: floor-standing or floor built-in for LV and LCV.
29,900.00 €
VAT Excl.
€66.00
This product is no longer listed with us
This product is replaced with :
PE 6352T - SCISSOR LIFT 5.5T AUXILIARY LIFT 4.5T TECH CONTROL IN-GROUND
Characteristics
| Item name | SCISSOR LIFT 5T AUXILIARY LIFT 3.5T PACK. 1/1 |
|---|---|
| EAN code | 3701555308470 |
| Intro |
Especially adapted for technical inspection, geometries, repair and adjustment of headlights. Installation possibilities: floor-standing or floor built-in for LV and LCV. |
| Text |
Maximum safety: 1 push cylinder with mechanical secure position hold (rack) for position stabilization. Safety is pneumatic. Made in Europe, powder coated. |
| Specifications |
Specifications: - lifting height: 350-2155mm - lifting time: +/- 65s - lowering time: +/- 60s - width/length raceways: 625/5400mm - system sync: photo cell - drive power: 2.6kw - electrical voltage of the drive: (3 ~) 400/50 V/Hz |
| Contents |
Contents: Slip plates Slots for swivel trays Auxiliary lift 3500 kg, lift height 425mm with ramp extension L: 1430mm to 2050mm Guide rails for a lifting crossbeam |
| Options |
Options: - EG8380: pair of turntables - PE0003: 6-movement front sliding plate for technical control - PE7000: 3T pneumatic lifting crossbar - PE0008: access ramp extension 1600mm |
| Advice |
Please contact us for installation and start-up. Within the framework of the warranty, installation and start-up must be carried out by a professional. Transportation costs not included. |
| Warranty period | 2 years |
| Power | 2600W |
| Tension | 400V |
| Product weight | 2,250.00 kg |
| Maximum load (T) | 5.00 T |
| Tariff code | Tariff Equipment (TE) |
