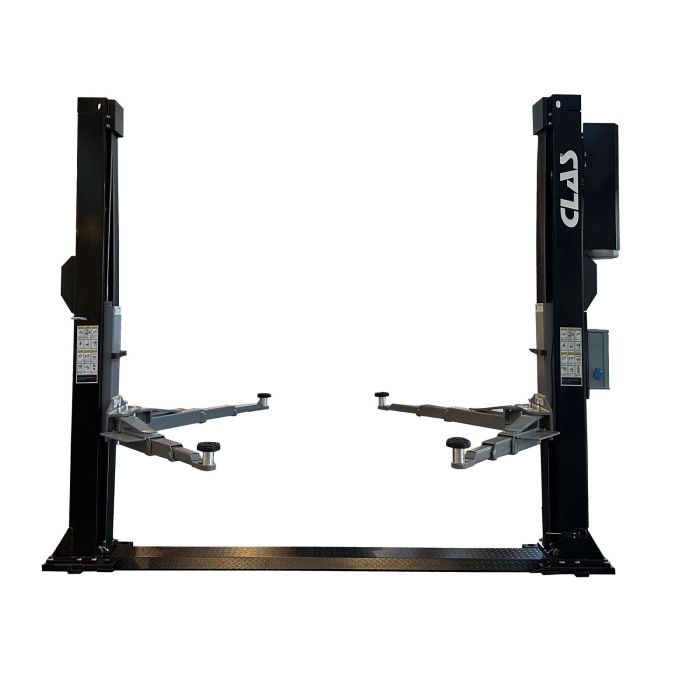

2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T 2ARMS 1.10+1.50m

SKU

PE 2100T

Product values View all features

Post lift designed to facilitate column installation and alignment thanks to its 40mm-thick base. With the PE 2101 option, it can be used for screeds that don't meet the minimum thickness requirement of 200mm (it can cover up to 150mm), or that present a slight flatness problem. Electro-hydraulic post lift. Pusher cylinder on cable, cart traction by chain. Multiple lifting capacities thanks to telescopic arms in asymmetrical version with 1100 mm and 1500 mm 3-stage arms.

3,999.00 ^€ ^{VAT Excl.} €66.00

Offer valid only in mainland France

AD00TKT02L

THINKTOOL LITE DIAGNOSTIC TOOL 6"
Free

Qty

Add to Wish List

Our selection

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Characteristics

More Information
Item name	2 COLUMNS ASYMETRIC POST LIFT WITH BASEMENT 400V 4T 2ARMS 1.10+1.50m
EAN code	3701555318004
Text	Post lift designed to facilitate column installation and alignment thanks to its 40mm-thick base. With the PE 2101 option, it can be used for screeds that don't meet the minimum thickness requirement of 200mm (it can cover up to 150mm), or that present a slight flatness problem. Electro-hydraulic post lift. Pusher cylinder on cable, cart traction by chain. Multiple lifting capacities thanks to telescopic arms in asymmetrical version with 1100 mm and 1500 mm 3-stage arms.
Product highlight	Low thickness slab

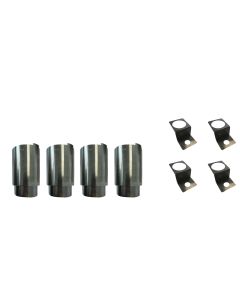

Specifications	Specifications: - lifting height: 100-2100mm - lifting time: +/- 50s - lowering time: +/- 30s - drive power: 2.2kW - drive voltage: (3 ~ + N) 400V/50/Hz - adjustable screw buffers, stroke 70-140mm - automatic release of safety catches - emergency lowering system in the event of power failure - system synchronization: by cable - intermediate stop 20 cm above ground for user safety and anti-crushing audible signal - engine protection - door protection on columns - 230V electrical socket on electrical box - protective strip for cylinder, chain and cables included on each column - supplied with 4x70mm risers and brackets - Epoxy paint
Advice	Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus.
Warranty period	2 years
Power	2200W
Tension	400V
Length	3,440.00 mm
Width	44.00 mm
Height	2,965.00 mm
Max. height	2,100.00 mm
Min. height	100.00 mm
Drive through width	2,460.00 mm
Maximum load (T)	4.00 T
Tariff code	Tariff Equipment (TE)
Composition of nomenclature	1 x PE 2102 - 2 COLUMNS WITH BASEMENT 400V 4T WITHOUT ARMS 1 x PE 2103T - ENGINE BLOC 2 COLUMNS POST LIFT 4T 1 x PE 2104 - 2 COLUMNS POST LIFT WITH BASEMENT ACCESSORIES 4T 1 x PE 2110 - PAIR OF ARMS WITH BLOCK 1.10m AND FOOT PROTECTION 1 x PE 2111 - PAIR OF ARMS WITH BLOCK 1.50m AND FOOT PROTECTION 2 x SA 3012 - HV46 HYDRAULIC OIL 5L 1 x PE 2117 - 2 COLUMNS POST LIFT BASE 4T LOW PASSAGE
Warranty Procedure	INTERVENTION
Customer benefit	Delivered with 46V hydraulic oil
Disjoncteur/Section de câble	10A D / 5x2.5mm2

After sales service & consumables

NEW

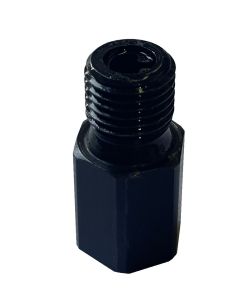

SA 4600 TWO POST LIFT BUFFER VALVE

30.00 ^€ ^{VAT Excl.}
NEW

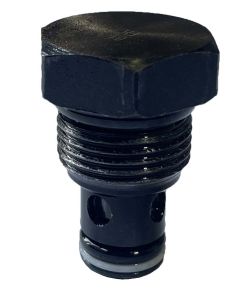

SA 4601 TWO POST LIFT SINGLE WAY VALVE

60.00 ^€ ^{VAT Excl.}
NEW

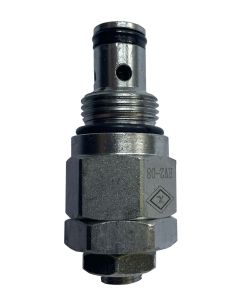

SA 4604 TWO POST LIFT PUMP STATION OVERFLOW VALVE

50.00 ^€ ^{VAT Excl.}
NEW

SA 4605 ELECTROMAGNETIC RETURN VALVE

110.00 ^€ ^{VAT Excl.}
NEW

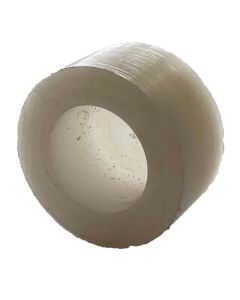

SA 4612 WHEEL OF CYLINDER GUIDE WHEEL CARRIER

2.00 ^€ ^{VAT Excl.}
NEW

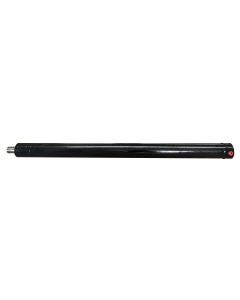

SA 4615 SLAVE CYLINDER

343.00 ^€ ^{VAT Excl.}
NEW

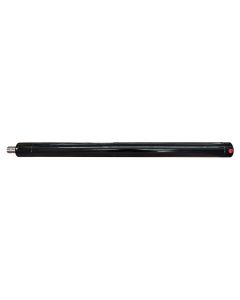

SA 4616 MASTER CYLINDER

343.00 ^€ ^{VAT Excl.}
NEW

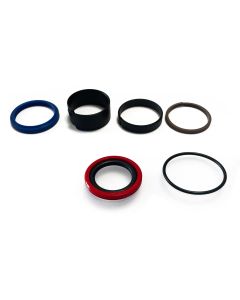

SA 4617 CYLINDER SEALING RING SET

40.00 ^€ ^{VAT Excl.}
NEW

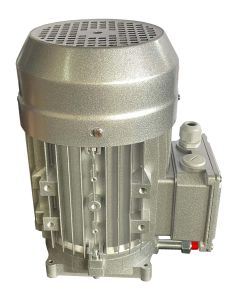

SA 4621 2 POST LIFT MOTOR (400V)

450.00 ^€ ^{VAT Excl.}
NEW

SA 4622 2 POST LIFT MOTOR (230V)

450.00 ^€ ^{VAT Excl.}
NEW

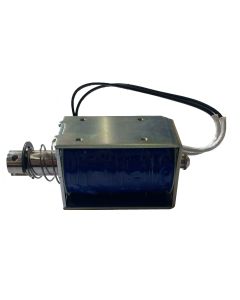

SA 4623 ELECTRIC UNLOCKING MAGNET

107.00 ^€ ^{VAT Excl.}
NEW

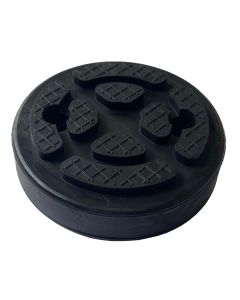

SA 4625 TRAY RUBBER PAD

7.00 ^€ ^{VAT Excl.}
NEW

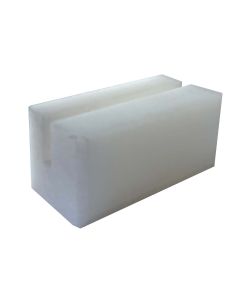

SA 4626 SLIDING BLOCK FOR PULLEY

9.00 ^€ ^{VAT Excl.}
NEW

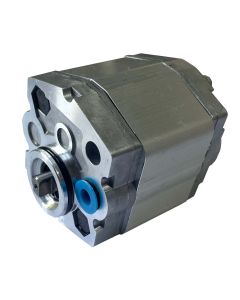

SA 4627 TWO POST LIFT PUMP STATION GEAR PUMP

117.00 ^€ ^{VAT Excl.}
NEW

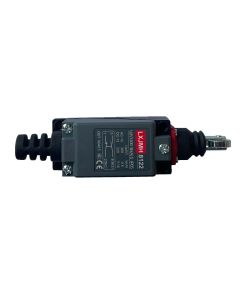

SA 4635 TOP LIMIT SWITCH ON THE POST

30.00 ^€ ^{VAT Excl.}
NEW

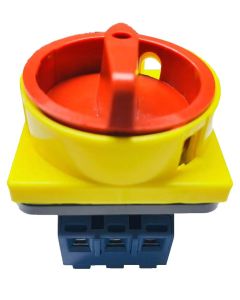

SA 4637 POWER SWITCH

34.00 ^€ ^{VAT Excl.}
NEW

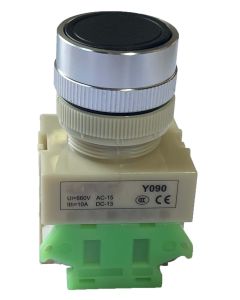

SA 4638 BUTTON/BUTTON（SINGLE WAY CONNECTION)

10.00 ^€ ^{VAT Excl.}
NEW

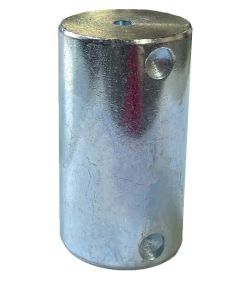

SA 4644 CHAIN WHEEL AXLE

15.00 ^€ ^{VAT Excl.}
NEW

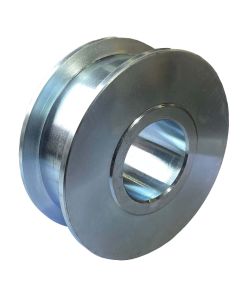

SA 4645 CHAIN WHEEL

50.00 ^€ ^{VAT Excl.}
NEW

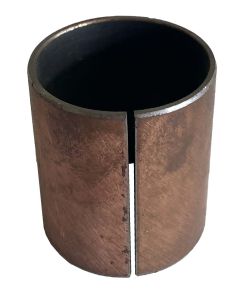

SA 4646 COPPER BUSH FOR CHAIN WHEEL

15.00 ^€ ^{VAT Excl.}
NEW

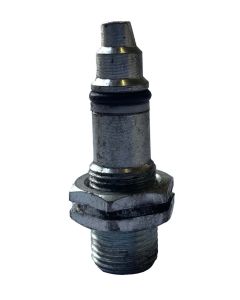

SA 4670 TWO POST LIFT PUMP STATION THROTTLE ROD

9.00 ^€ ^{VAT Excl.}
NEW

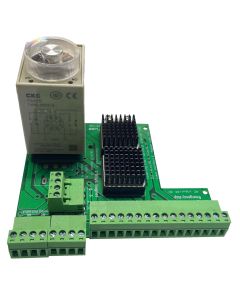

SA 4674 CONTROL BOARD (PCB)

177.00 ^€ ^{VAT Excl.}
NEW

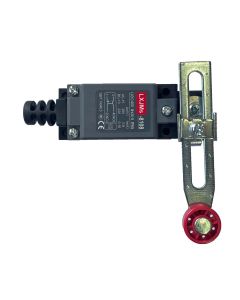

SA 4688 SECOND TIME LOWERING LIMIT SWITCH

30.00 ^€ ^{VAT Excl.}
NEW

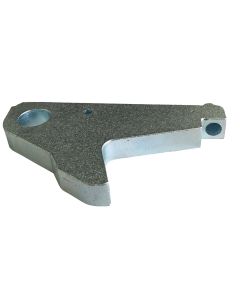

SA 4689 SAFETY HOOK

34.00 ^€ ^{VAT Excl.}
NEW

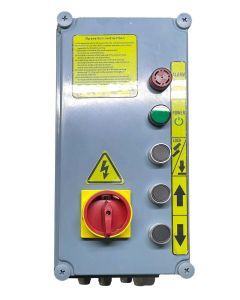

SA 4690 WHOLE SET OF CONTROL BOX（400V）

500.00 ^€ ^{VAT Excl.}
SA 4692 GUIDE WHEEL FOR BALANCING CABLE

14.00 ^€ ^{VAT Excl.}
NEW

SA 4693 THREE-SECTION ROTARY TRAY

47.00 ^€ ^{VAT Excl.}
NEW

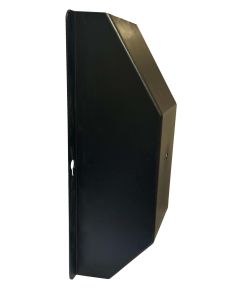

SA 4694 SAFETY COVER

20.00 ^€ ^{VAT Excl.}
NEW

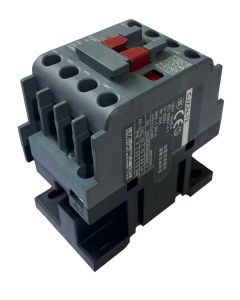

SA 4698 CONTACTOR

37.00 ^€ ^{VAT Excl.}
NEW

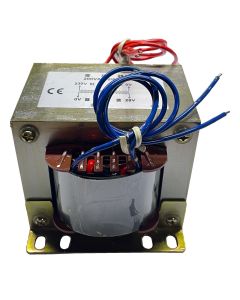

SA 4706 TRANSFORMER (400V）

177.00 ^€ ^{VAT Excl.}
NEW

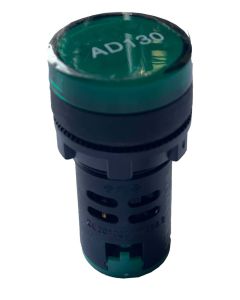

SA 4722 INDICATOR

7.00 ^€ ^{VAT Excl.}
NEW

SA 4734 PUMP MOTOR COUPLING

10.00 ^€ ^{VAT Excl.}
NEW

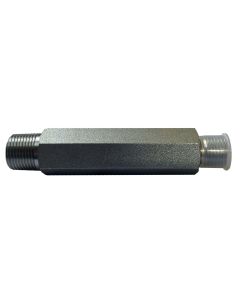

SA 4736 LONG OIL PIPE JOINT/OIL CYLINDER CONNECTOR

9.00 ^€ ^{VAT Excl.}
NEW

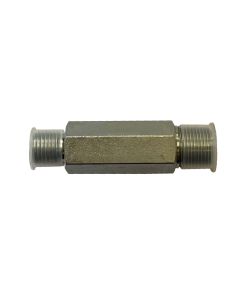

SA 4737 SUPER SHORT OIL CYLINDER CONNECTOR FOR H FRAME

9.00 ^€ ^{VAT Excl.}
NEW

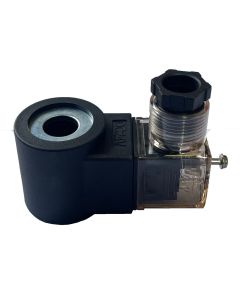

SA 4738 COIL OF ELECTROMAGNETIC RETURN VALVE

25.00 ^€ ^{VAT Excl.}
NEW

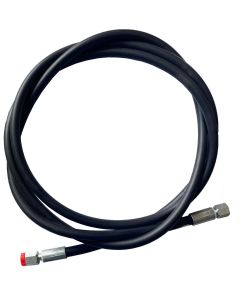

SA 4743 SHORT OIL PIPE (2.47M）

64.00 ^€ ^{VAT Excl.}
NEW

SA 4744 LONG OIL PIPE 2.92M FOR H FRAME

74.00 ^€ ^{VAT Excl.}
NEW

SA 4745 ELECTRICAL BREAKER (3 PHASE)/AIR SWITCH

60.00 ^€ ^{VAT Excl.}
NEW

SA 4746 ELECTRICAL BREAKER (1 PHASE)

47.00 ^€ ^{VAT Excl.}
NEW

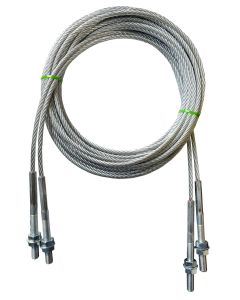

SA 4805 WIRE ROPE

100.00 ^€ ^{VAT Excl.}
NEW

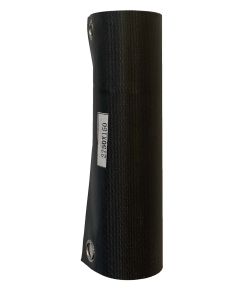

SA 4806 CURTAIN

20.00 ^€ ^{VAT Excl.}
NEW

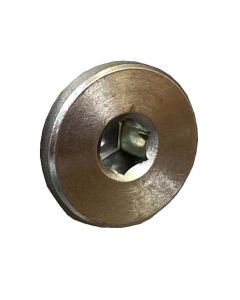

SA 4807 CAP FOR TWO POST LIFT PUMP STATION

10.00 ^€ ^{VAT Excl.}
NEW

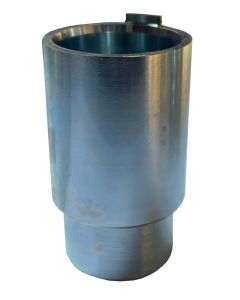

SA 4837 EXTENSION+THREE-SECTION ROTARY TRAY+TRAY RUBBER PAD+TRAY SCREW

64.00 ^€ ^{VAT Excl.}
