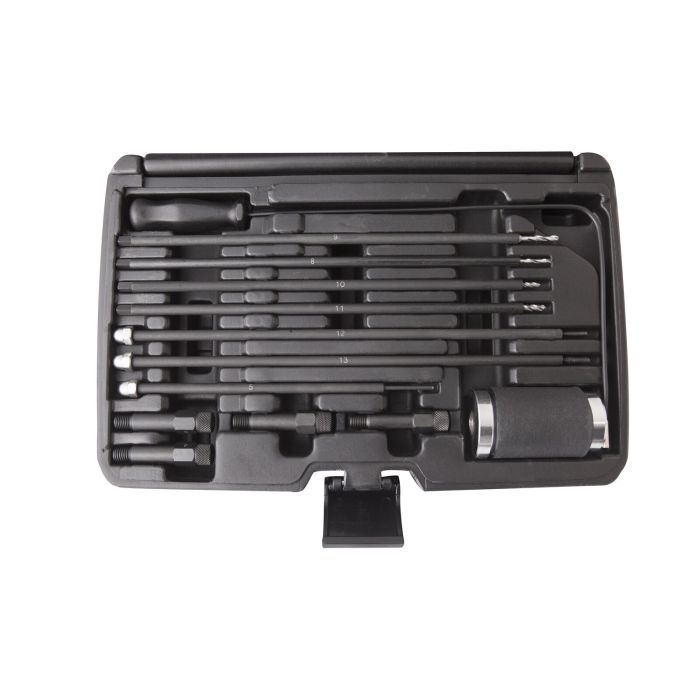

M8-M9-M10 GLOW PLUG ELECTRODE EXTRACTION KIT

SKU
OM 3790
Product values View all features
Kit to extract the final part of the electrode which is impossible to pull out if it splits or seizes inside the M8, M9 or M10 glow plug seat. This easy-to-use kit considerably reduces labor hours and cost of labor. It is also compatible with specific engines equipped with M8 glow plugs with electrodes of the diameter of M10 glow plugs (see specific applications to find the vehicles concerned).
DIESEL.jpg GARANTIE2.jpg VL.jpg VUL.jpg TN.jpg
429.00 VAT Excl.
Add to Wish List

Characteristics

More Information
Item name M8-M9-M10 GLOW PLUG ELECTRODE EXTRACTION KIT
EAN code 3700461486838
Intro Kit to extract the final part of the electrode which is impossible to pull out if it splits or seizes inside the M8, M9 or M10 glow plug seat.
This easy-to-use kit considerably reduces labor hours and cost of labor.
It is also compatible with specific engines equipped with M8 glow plugs with electrodes of the diameter of M10 glow plugs (see specific applications to find the vehicles concerned).
Contents Contents:
- slide hammer for the extraction of M8-M9-M10 glow plugs

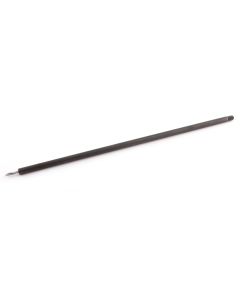

- SA3791: Ø2.5 drill tip fitted with extension
- SA3792: M3 male fitted with extension

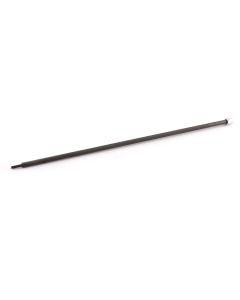

- SA3793: M3 extraction rod with fitted nut

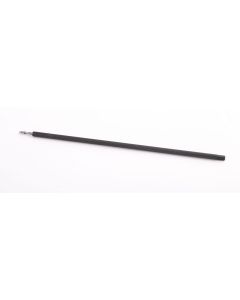

- SA3794: Ø3.2 tip fitted with extension (for specific engines)

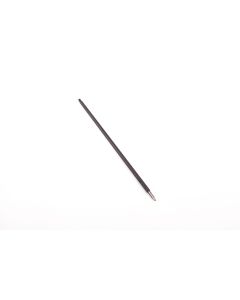

- SA3795: M4 male fitted with extension (for specific engines)
- SA3796: M4 extraction rod with fitted nut (for specific engines)

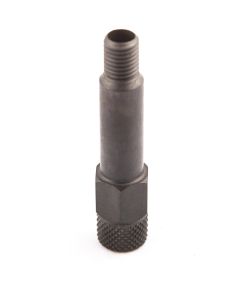

- M8x1 glow plug guide
- M9x1 glow plug guide
- M10x1 glow plug guide
- M10x1.25 glow plug guide
Applications Models:
Citroën: Xsara, Xsara break, Xsara coupé, Xsara Picasso, Berlingo, C2, C3 (FC_), C3 Pluriel, C4 Coupé, C4 Grand Picasso, C5, C5 Break (RE)
Ford: C-Max, Fiesta V, Focus C-Max, Focus 2, Fusion
Mazda: Mazda 2
Peugeot: 107, 206 (2A/C), 206 SW (2E/K), 206 CC (2D), 207, 307 (3A/C), 307 Break (3E), 307 SW (3H), 407, 407 SW, 1007
Suzuki: Liana, Kombi
Toyota: Aygo
Volvo: S40 II, V50
Engines: 1.4 HDI, 1.4 HDI 16V, 1.4 HDI ECO 70, 1.6 HDI, 1.6 HDI 90, 1.6 HDI 110 FAP, 1.6 HDI 16V, 1.4 TDCI, 1.6 TDCI, 1.4 CD, 1.4 DDIS, 1.6 D
Engine codes DV4 , DV6 , DV6TED4 , DV6ATED4 , 8HX (DV4TD) , 8HY , 8HY (DV4TED4) , 8HZ (DV4TD) , 9HX (DV6ATED4) , 9HY (DV6TED) , 9HY (DV6TED4) , 9HZ (DV6TED4) , F6JA , F6JB , G8DA , G8DB , G8DD , G9DB , GPDA , HHDA , HHDB , HHJA , HHJB , 2WZ-TV , D 4164 T
Options Option: reversible angle drill OP1218
Warranty period 2 years
Fuel type Diesel
Tariff code Tariff Normal (TN)
Warranty Procedure EASY
