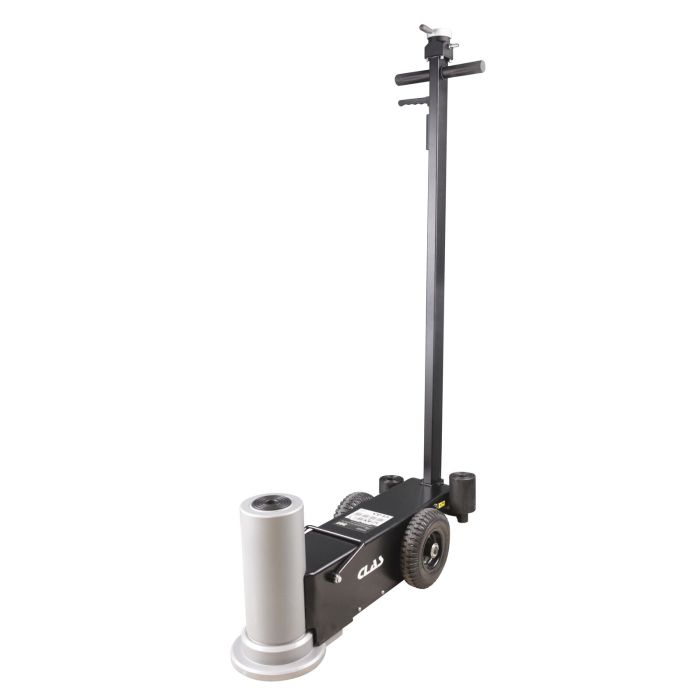

HIGH LIFT AIR HYDRAULIC JACK 30T

SKU
OH 9032N
GARANTIE2.jpg PL.jpg VL.jpg VUL.jpg TN.jpg
€2,690.00 VAT Excl.
Add to Wish List

Characteristics

More Information
Item name HIGH LIFT AIR HYDRAULIC JACK 30T
Bar code 3700461496950
Product highlight Holds full power in high rise
Specifications Specifications:
- provides quick and effortless lifts
- safety overload system
- equipped with a speed control descent system for enhanced security
- long T-handle to ease jack positioning under vehicle
- 3 positions: 90-45-0° with metal locking system
- tempered piston for high resistance
- min. height: without extension 360mm/with extensions 505mm
- max. height: without extension 627mm/with extensions 772mm
- length: 840mm
- width: 282mm
- extensions: 45-100mm
- air pressure: 9-12bar
- weight: 87kg
Applications Applications: Civil engineering machinery, agricultural machinery, military machinery, trains.
Warranty period 2 years
Length (mm) 840.00 mm
Width 282.00 mm
Product weight (kg) 87.00 kg
Max. height 772.00 mm
Min. height 360.00 mm
Jack type Hydropneumatic
Maximum load (T) 30.00 T
Tariff code Tariff Normal (TN)
Composition of nomenclature 1 x OH 9032-1 - HIGH LIFT AIR HYDRAULIC JACK 30T
1 x OH 9032-2 - HIGH LIFT AIR HYDRAULIC JACK 30T
Warranty Procedure NO

has as After sales service & consumables
