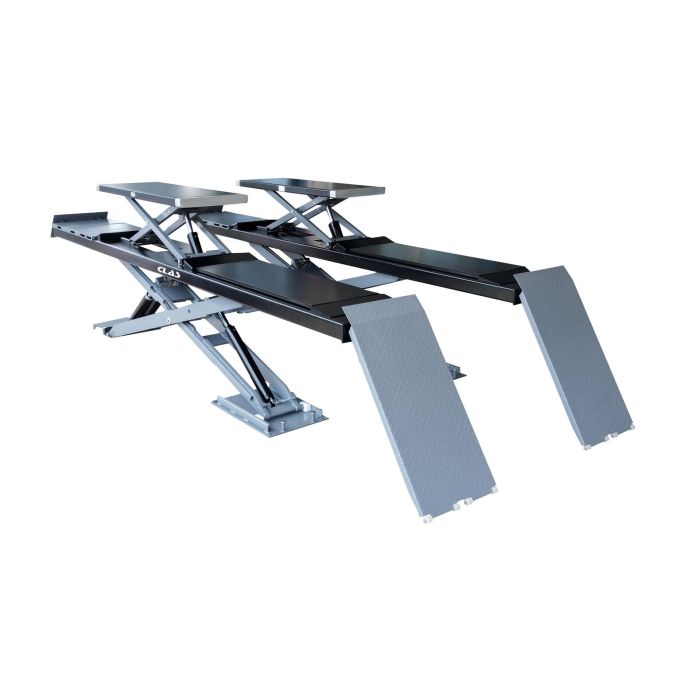

EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5T ON-GROUND

SKU

PE 6250T

Product values View all features

Especially adapted for technical inspection, geometries, repair and adjustment of headlights. On ground scissor lift for LV and LCV. Working comfort: quick and easy vehicle mounting on the extra-low 140mm post lift. Maximum safety: mechanical safety rack on main and auxiliary scissors to stabilize position. Auxiliary lift capacity 4T with 2 galvanized extensions. The secondary auxiliary cylinder is chrome-plated for extra durability. Pneumatically locked swing plates.

15,999.00 ^€ ^{VAT Excl.} €66.00

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Characteristics

More Information
Item name	EXTRA LOW PROFILE SCISSOR LIFT AUXILIARY LIFT 400V 5T ON-GROUND
EAN code	3701555318080
Text	Especially adapted for technical inspection, geometries, repair and adjustment of headlights. On ground scissor lift for LV and LCV. Working comfort: quick and easy vehicle mounting on the extra-low 140mm post lift. Maximum safety: mechanical safety rack on main and auxiliary scissors to stabilize position. Auxiliary lift capacity 4T with 2 galvanized extensions. The secondary auxiliary cylinder is chrome-plated for extra durability. Pneumatically locked swing plates.
Product highlight	Extra low-profile 140mm
Specifications	Specifications: - lifting height: 140-1850mm - lifting time: +/- 50s - lowering time: +/- 30s - track width/length: 655/5000mm - total length with access ramps: 6380mm - system synchronization: photo cell - control console - drive power: 3kw - drive voltage: (3 ~) 400V/50 V/Hz - required air supply 6-8 bar. - swing tracks pneumatic locking - epoxy paint - emergency lowering system in case of power failure - intermediate stop at 20 cm from the ground for operator safety and anti-crushing audible signal
Advice	Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus.
Warranty period	2 years
Power	3000W
Tension	400V
Length	5,000.00 mm
Width	2,190.00 mm
Max. height	1,850.00 mm
Min. height	140.00 mm
Maximum load (T)	5.00 T
Tariff code	Tariff Equipment (TE)
Composition of nomenclature	1 x PE 6250T-1 - EXTRA LOW PROFILE SCISSOR LIFT AUX 400V 5T ON-GROUND 1/5 1 x PE 6250T-2 - EXTRA LOW PROFILE SCISSOR LIFT AUX 400V 5T ON-GROUND 2/5 1 x PE 6250T-3 - EXTRA LOW PROFILE SCISSOR LIFT AUX 400V 5T ON-GROUND 3/5 1 x PE 6250T-4 - EXTRA LOW PROFILE SCISSOR LIFT AUX 400V 5T ON-GROUND 4/5 1 x PE 6250T-5 - EXTRA LOW PROFILE SCISSOR LIFT AUX 400V 5T ON-GROUND 5/5 4 x SA 3012 - HV46 HYDRAULIC OIL 5L
Warranty Procedure	INTERVENTION
Customer benefit	Supplied with HV46 hydraulic oil and ground fixing kit
Disjoncteur/Section de câble	16A D / 5x2.5mm2
on-ground/in-ground	on-ground

After sales service & consumables

NEW

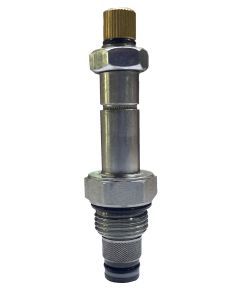

SA 4605 ELECTROMAGNETIC RETURN VALVE

110.00 ^€ ^{VAT Excl.}
NEW

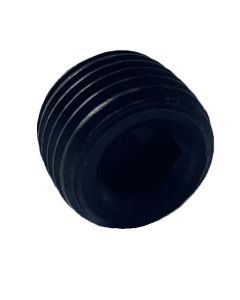

SA 4606 CAP

10.00 ^€ ^{VAT Excl.}
NEW

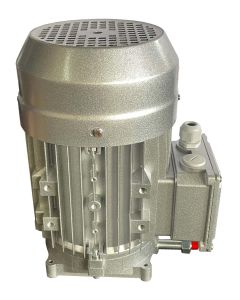

SA 4619 SCISSOR MOTOR (400V)

450.00 ^€ ^{VAT Excl.}
NEW

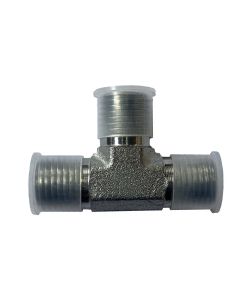

SA 4624 TUBING 3-WAY

7.00 ^€ ^{VAT Excl.}
NEW

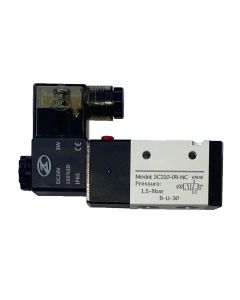

SA 4647 SOLENOID VALVE

44.00 ^€ ^{VAT Excl.}
NEW

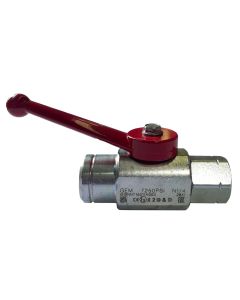

SA 4648 BALL VALVE

77.00 ^€ ^{VAT Excl.}
NEW

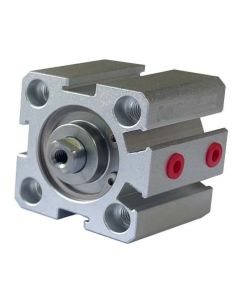

SA 4650 SUB LIFT SAFETY DEVICE OPEN CYLINDER

30.00 ^€ ^{VAT Excl.}
NEW

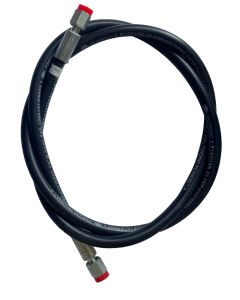

SA 4652 SCISSOR TUBING 1650

60.00 ^€ ^{VAT Excl.}
NEW

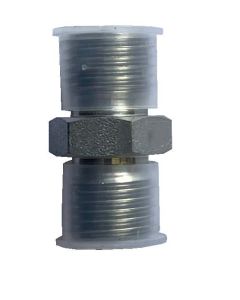

SA 4654 DIRECT CONNECTION

7.00 ^€ ^{VAT Excl.}
NEW

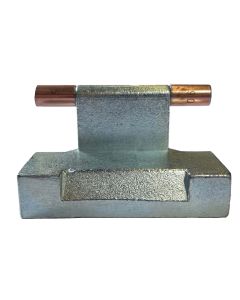

SA 4657 SAFETY JAW

40.00 ^€ ^{VAT Excl.}
NEW

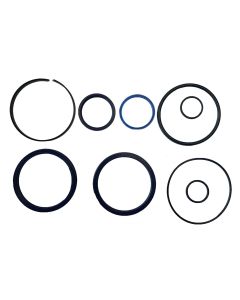

SA 4662 SECONDARY LEVEL MIAN CYLINDER OIL SEALS GROUP

84.00 ^€ ^{VAT Excl.}
NEW

SA 4663 UPPER SHEAR SUB-CYLINDER SEALING RING SET

70.00 ^€ ^{VAT Excl.}
NEW

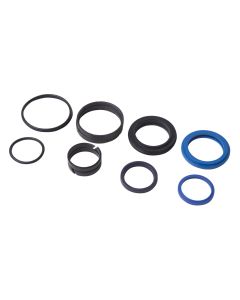

SA 4664 SEALING GROUP OF MAIN OIL CYLINDER

80.00 ^€ ^{VAT Excl.}
NEW

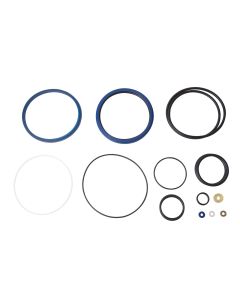

SA 4665 SEALING GROUP OF SLAVE OIL CYLINDER

70.00 ^€ ^{VAT Excl.}
NEW

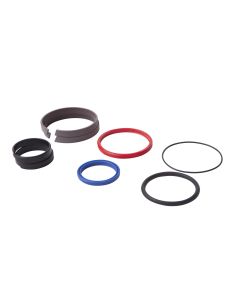

SA 4666 SEALING GROUP OF FRONT AUXILIARY OIL CYLINDER

70.00 ^€ ^{VAT Excl.}
NEW

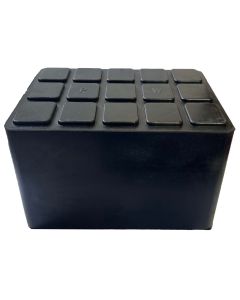

SA 4667 BIG RUBBER PAD

30.00 ^€ ^{VAT Excl.}
NEW

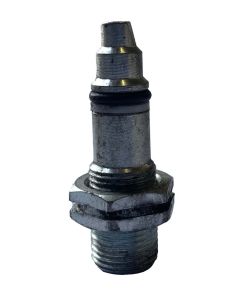

SA 4671 THROTTLE ROD

10.00 ^€ ^{VAT Excl.}
NEW

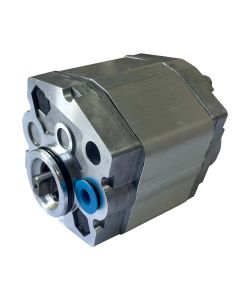

SA 4673 SCISSOR LIFT 400V GEAR PUMP

130.00 ^€ ^{VAT Excl.}
NEW

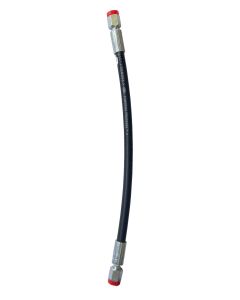

SA 4675 SCISSOR TUBING 320

24.00 ^€ ^{VAT Excl.}
NEW

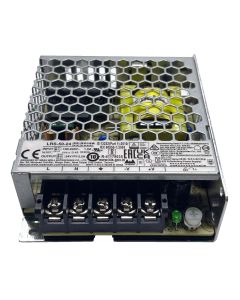

SA 4684 SCISSOR LIFT PLC TRANSFORMER

40.00 ^€ ^{VAT Excl.}
NEW

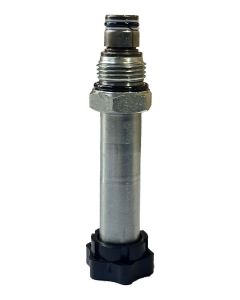

SA 4696 TWO WAY CHECK VALVE

150.00 ^€ ^{VAT Excl.}
NEW

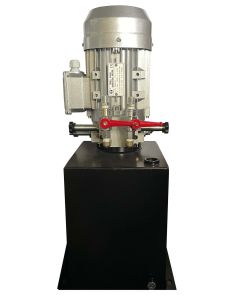

SA 4697 380V/400V PUMP STATION ASSEMBLY

1,196.00 ^€ ^{VAT Excl.}
NEW

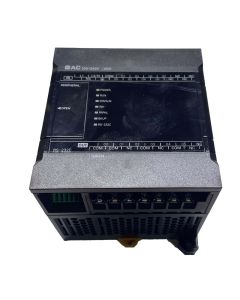

SA 4716 5040 PLC

500.00 ^€ ^{VAT Excl.}
NEW

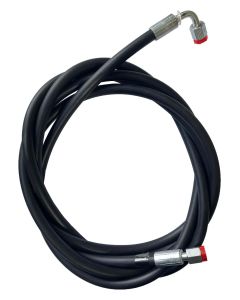

SA 4718 SCISSOR TUBING 3500

80.00 ^€ ^{VAT Excl.}
NEW

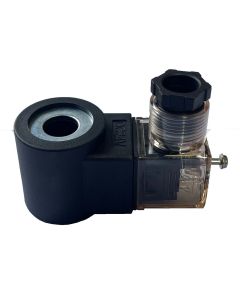

SA 4719 OIL RETURN VALVE COIL

27.00 ^€ ^{VAT Excl.}
NEW

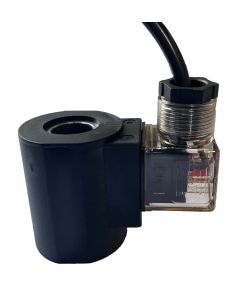

SA 4720 TWO-WAY CHECK VALVE COIL

37.00 ^€ ^{VAT Excl.}
NEW

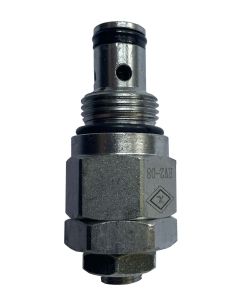

SA 4721 OVERFLOW VALVE

50.00 ^€ ^{VAT Excl.}
NEW

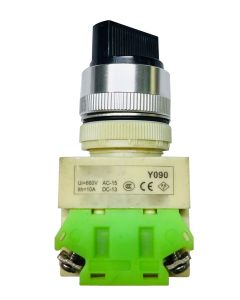

SA 4726 TRANSFER SWITCH

17.00 ^€ ^{VAT Excl.}
NEW

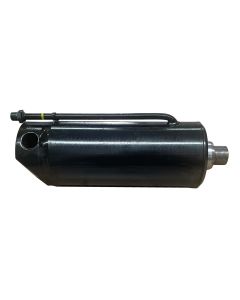

SA 4727 SECONDARY LEVEL MAIN CYLINDER

560.00 ^€ ^{VAT Excl.}
NEW

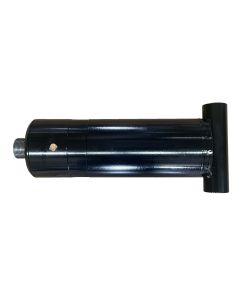

SA 4728 SCISSOR THE SUB OIL CYLINDER

430.00 ^€ ^{VAT Excl.}
NEW

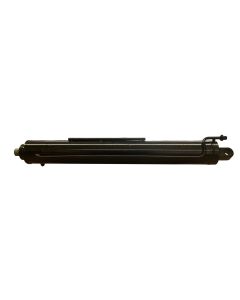

SA 4729 MASTER CYLINDER

760.00 ^€ ^{VAT Excl.}
NEW

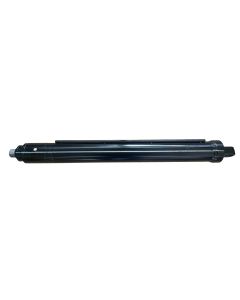

SA 4730 SLAVE CYLINDER

740.00 ^€ ^{VAT Excl.}
NEW

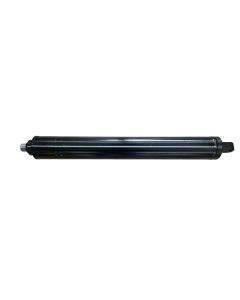

SA 4731 FRONT AUXILIARY OIL CYLINDER

740.00 ^€ ^{VAT Excl.}
NEW

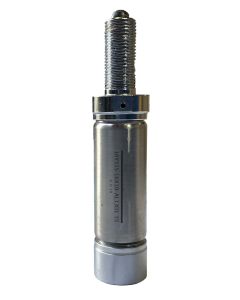

SA 4732 SAFETY JAW CYLINDER

37.00 ^€ ^{VAT Excl.}
NEW

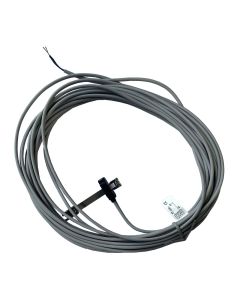

SA 4733 ULTRATHIN AIR CYLINDER SENSE

40.00 ^€ ^{VAT Excl.}
NEW

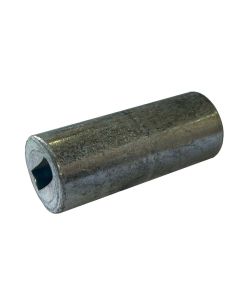

SA 4734 PUMP MOTOR COUPLING

10.00 ^€ ^{VAT Excl.}
NEW

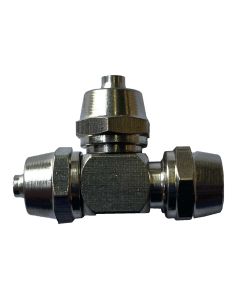

SA 4735 T-TEE FITTING APE6

7.00 ^€ ^{VAT Excl.}
NEW

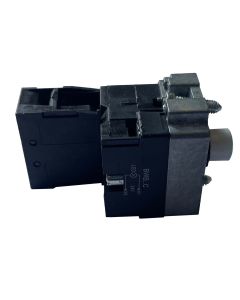

SA 4758 LIGHT BUTTON

14.00 ^€ ^{VAT Excl.}
NEW

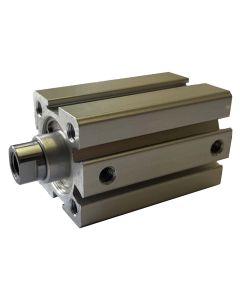

SA 4767 SLIDER BOARD CYLINDER

54.00 ^€ ^{VAT Excl.}
NEW

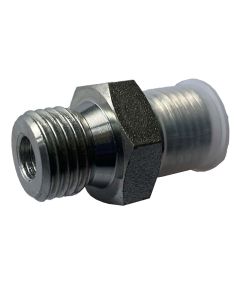

SA 4773 FIRST LEVEL CYLINDER CONNECTOR

7.00 ^€ ^{VAT Excl.}
NEW

SA 4774 SECONDARY LEVEL CYLINDER CONNECTOR

7.00 ^€ ^{VAT Excl.}
NEW

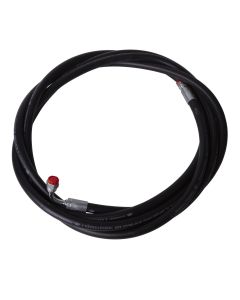

SA 4800 SCISSOR TUBING 5000

114.00 ^€ ^{VAT Excl.}
NEW

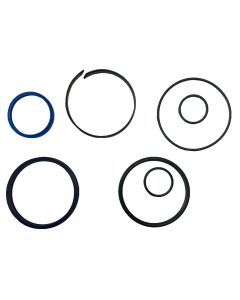

SA 4811 OIL TANK RUBBER RING

10.00 ^€ ^{VAT Excl.}
NEW

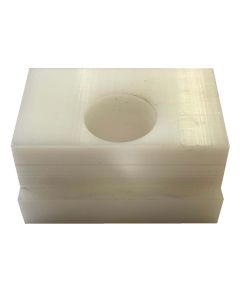

SA 4816 UPPER SLIDING BLOCK

17.00 ^€ ^{VAT Excl.}
NEW

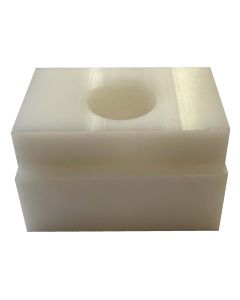

SA 4817 LOWER SLIDING BLOCK

17.00 ^€ ^{VAT Excl.}
NEW

SA 4818 UPPER X SLIDING BLOCK

10.00 ^€ ^{VAT Excl.}
