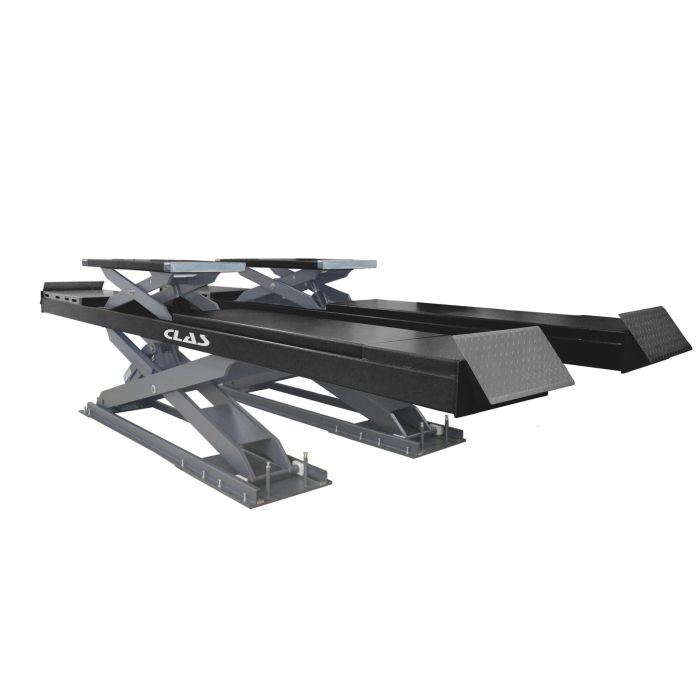

EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 4.5T IN-GROUND

SKU

PE 6351T

Product values View all features

Especially adapted for technical inspection, geometries, repair and adjustment of headlights. Installation possibilities: floor-standing or floor built-in for LV and LCV. Working comfort: quick and easy vehicle mounting on the extra-low 140mm lift. Maximum safety: mechanical safety rack on main and auxiliary scissors to stabilize position. Auxiliary lift capacity 4.5T with 2 galvanized extensions. The secondary auxiliary cylinder is chrome-plated for extra durability. Pneumatically locked swing plates.

15,999.00 ^€ ^{VAT Excl.} €66.00

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Characteristics

More Information
Item name	EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 4.5T IN-GROUND
EAN code	3701555318127
Text	Especially adapted for technical inspection, geometries, repair and adjustment of headlights. Installation possibilities: floor-standing or floor built-in for LV and LCV. Working comfort: quick and easy vehicle mounting on the extra-low 140mm lift. Maximum safety: mechanical safety rack on main and auxiliary scissors to stabilize position. Auxiliary lift capacity 4.5T with 2 galvanized extensions. The secondary auxiliary cylinder is chrome-plated for extra durability. Pneumatically locked swing plates.
Product highlight	perfect drivetrain control
Specifications	Specifications: - lifting height: 0-1980mm - lifting time: +/- 50s - lowering time: +/- 30s - track width/length: 690/5200mm - system synchronization: photo cell - control console - drive power: 3kw - drive voltage: (3 ~) 400V/50 V/Hz - required air supply 6-8 bar. - swing tracks pneumatic locking - epoxy paint - emergency lowering system in case of power failure - intermediate stop at 20 cm from the ground for operator safety and anti-crushing audible signal
Advice	Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus.
Warranty period	2 years
Power	3000W
Tension	400V
Length	5,200.00 mm
Max. height	1,950.00 mm
Maximum load (T)	5.50 T
Tariff code	Tariff Equipment (TE)
Composition of nomenclature	1 x PE 6351T-1 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUX. LIFT 4.5T IN-GROUND 1/4 1 x PE 6351T-2 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUX. LIFT 45T IN-GROUND 2/4 1 x PE 6351T-3 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUX. LIFT 4.5T IN-GROUND 3/4 1 x PE 6351T-4 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUX. LIFT 4.5T IN-GROUND 4/4 4 x SA 3012 - HV46 HYDRAULIC OIL 5L
Warranty Procedure	INTERVENTION
Customer benefit	Supplied with HV46 hydraulic oil and ground fixing kit
Disjoncteur/Section de câble	16A D / 5x2.5mm2
on-ground/in-ground	in-ground

After sales service & consumables

NEW

SA 4605 ELECTROMAGNETIC RETURN VALVE

110.00 ^€ ^{VAT Excl.}
NEW

SA 4606 CAP

10.00 ^€ ^{VAT Excl.}
NEW

SA 4619 SCISSOR MOTOR (400V)

450.00 ^€ ^{VAT Excl.}
NEW

SA 4624 TUBING 3-WAY

7.00 ^€ ^{VAT Excl.}
NEW

SA 4637 POWER SWITCH

34.00 ^€ ^{VAT Excl.}
NEW

SA 4638 BUTTON/BUTTON（SINGLE WAY CONNECTION)

10.00 ^€ ^{VAT Excl.}
NEW

SA 4647 SOLENOID VALVE

44.00 ^€ ^{VAT Excl.}
NEW

SA 4648 BALL VALVE

77.00 ^€ ^{VAT Excl.}
NEW

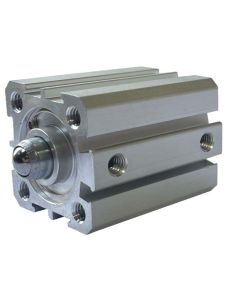

SA 4649 MAIN SCISSOR LOCK RELEASE AIR CYLINDER

54.00 ^€ ^{VAT Excl.}
NEW

SA 4650 SUB LIFT SAFETY DEVICE OPEN CYLINDER

30.00 ^€ ^{VAT Excl.}
NEW

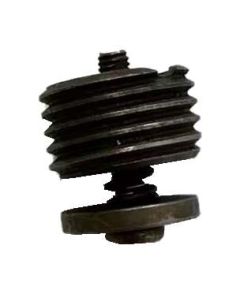

SA 4651 PARACHUTE VALVE

10.00 ^€ ^{VAT Excl.}
NEW

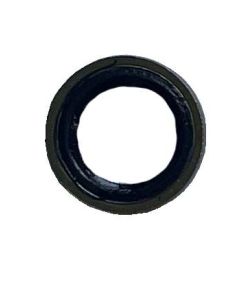

SA 4653 COMBINATION MAT

2.00 ^€ ^{VAT Excl.}
NEW

SA 4654 DIRECT CONNECTION

7.00 ^€ ^{VAT Excl.}
SA 4655 PILOT LAMP

7.00 ^€ ^{VAT Excl.}
NEW

SA 4656 PCB

27.00 ^€ ^{VAT Excl.}
NEW

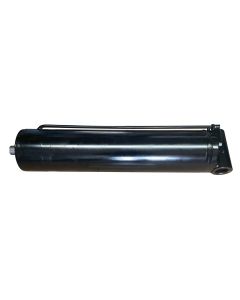

SA 4658 MAIN LIFT MAIN CYLINDER

876.00 ^€ ^{VAT Excl.}
NEW

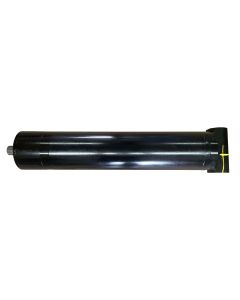

SA 4659 MAIN LIFT SUB CYLINDER (CHROME PLATED INNER)

950.00 ^€ ^{VAT Excl.}
NEW

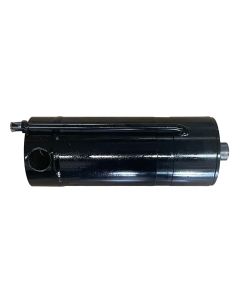

SA 4660 UPPER MAIN LIFT CYLINDER

533.00 ^€ ^{VAT Excl.}
NEW

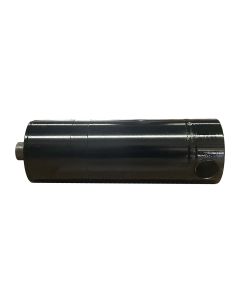

SA 4661 UPPER LIFT SUB CYLINDER（CHROME PLATE INNER）

610.00 ^€ ^{VAT Excl.}
NEW

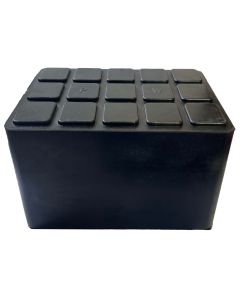

SA 4667 BIG RUBBER PAD

30.00 ^€ ^{VAT Excl.}
NEW

SA 4671 THROTTLE ROD

10.00 ^€ ^{VAT Excl.}
NEW

SA 4673 SCISSOR LIFT 400V GEAR PUMP

130.00 ^€ ^{VAT Excl.}
NEW

SA 4675 SCISSOR TUBING 320

24.00 ^€ ^{VAT Excl.}
NEW

SA 4677 AIR SENSOR

37.00 ^€ ^{VAT Excl.}
NEW

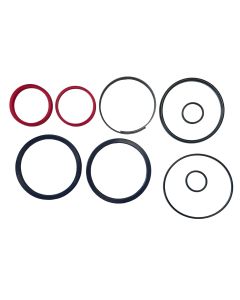

SA 4678 INGROUNDED SCISSOR LIFT MAIN OIL CYLINDER SEALING RING SET

84.00 ^€ ^{VAT Excl.}
NEW

SA 4679 INGROUNDED SCISSOR LIFT SUB CYLINDER SEAL RING SET

70.00 ^€ ^{VAT Excl.}
NEW

SA 4680 SCISSOR LIFT UPPER MAIN CYLINDER SEALING RING SET

84.00 ^€ ^{VAT Excl.}
NEW

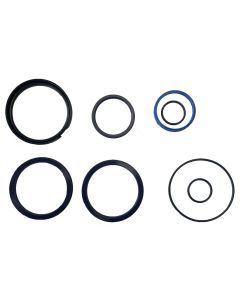

SA 4681 SCISSOR LIFT UPPER SUB CYLINDER SEALING RING SET

70.00 ^€ ^{VAT Excl.}
NEW

SA 4684 SCISSOR LIFT PLC TRANSFORMER

40.00 ^€ ^{VAT Excl.}
NEW

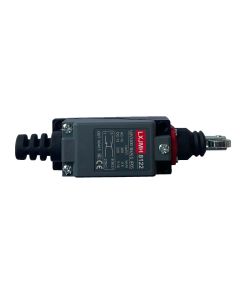

SA 4687 LIMIT SWITCH OF SECOND LEVEL LIFT

30.00 ^€ ^{VAT Excl.}
NEW

SA 4696 TWO WAY CHECK VALVE

150.00 ^€ ^{VAT Excl.}
NEW

SA 4697 380V/400V PUMP STATION ASSEMBLY

1,196.00 ^€ ^{VAT Excl.}
NEW

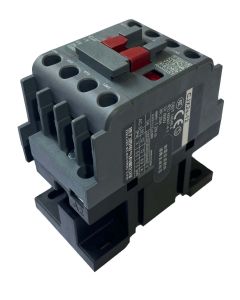

SA 4699 SCISSOR CONTACTOR FOR PLC

37.00 ^€ ^{VAT Excl.}
NEW

SA 4708 UPPER X FRAME WHEEL COPPER SET

5.00 ^€ ^{VAT Excl.}
NEW

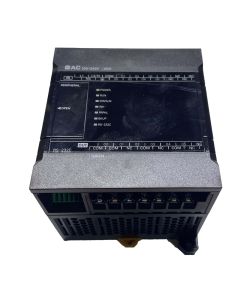

SA 4714 PLC FOR 5.5T INGROUNDED SCISSOR LIFT (WITH AIR LOCK SLIDER BOARD)/20 POINT

500.00 ^€ ^{VAT Excl.}
NEW

SA 4719 OIL RETURN VALVE COIL

27.00 ^€ ^{VAT Excl.}
NEW

SA 4720 TWO-WAY CHECK VALVE COIL

37.00 ^€ ^{VAT Excl.}
NEW

SA 4721 OVERFLOW VALVE

50.00 ^€ ^{VAT Excl.}
NEW

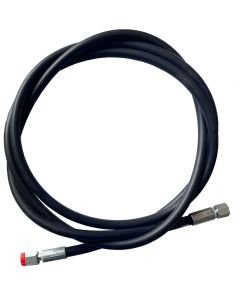

SA 4723 SCISSOR TUBING 1650 (8MM)

64.00 ^€ ^{VAT Excl.}
NEW

SA 4724 SCISSOR TUBING 4900 (S6)

100.00 ^€ ^{VAT Excl.}
NEW

SA 4725 SCISSOR TUBING 5000 (S8)

110.00 ^€ ^{VAT Excl.}
NEW

SA 4726 TRANSFER SWITCH

17.00 ^€ ^{VAT Excl.}
NEW

SA 4734 PUMP MOTOR COUPLING

10.00 ^€ ^{VAT Excl.}
NEW

SA 4735 T-TEE FITTING APE6

7.00 ^€ ^{VAT Excl.}
NEW

SA 4739 INFRARED SENSOR

80.00 ^€ ^{VAT Excl.}
NEW

SA 4745 ELECTRICAL BREAKER (3 PHASE)/AIR SWITCH

60.00 ^€ ^{VAT Excl.}
NEW

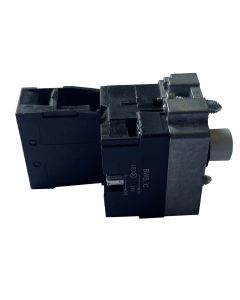

SA 4758 LIGHT BUTTON

14.00 ^€ ^{VAT Excl.}
NEW

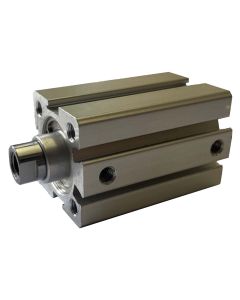

SA 4763 SIDE SLIDE UNLOCK CYLINDER

54.00 ^€ ^{VAT Excl.}
NEW

SA 4773 FIRST LEVEL CYLINDER CONNECTOR

7.00 ^€ ^{VAT Excl.}
NEW

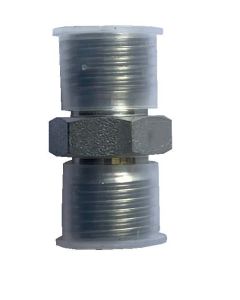

SA 4774 SECONDARY LEVEL CYLINDER CONNECTOR

7.00 ^€ ^{VAT Excl.}
NEW

SA 4811 OIL TANK RUBBER RING

10.00 ^€ ^{VAT Excl.}
NEW

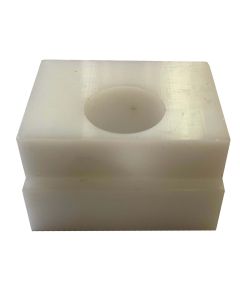

SA 4819 THE SLIDE ON THE LOWER X RACK

17.00 ^€ ^{VAT Excl.}
NEW

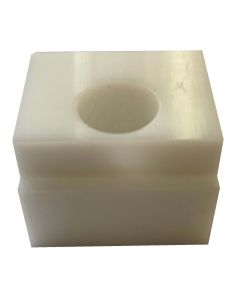

SA 4820 LOWERX SLIDE BLOCK

17.00 ^€ ^{VAT Excl.}
