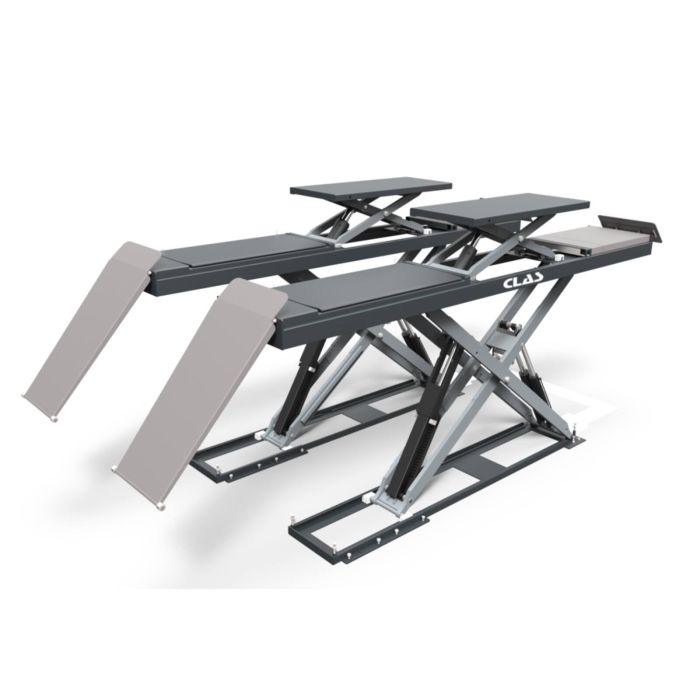

EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T
SKU
PE 6006M
Product values
View all features
Especially adapted for technical inspection, geometries, repair and adjustment of headlights.
Installation possibilities: floor-standing or floor built-in for LV and LCV.
20,190.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T |
|---|---|
| EAN code | 3701555307183 |
| Intro |
Especially adapted for technical inspection, geometries, repair and adjustment of headlights. Installation possibilities: floor-standing or floor built-in for LV and LCV. |
| Text |
Working comfort: quick and easy mounting of the vehicle on the 220mm extra-low deck. Maximum safety: 2 thrust cylinders, 1 cylinder with mechanical secure position hold (rack and pinion) for position stabilization. European origin, powder coated. |
| Product highlight | Extra low-profile 220mm |
| Specifications |
Specifications: - lifting height : 220-1860mm - lifting time : +/- 50s - lowering time: +/- 60s - track width/length : 620/5030mm - system synchronization: photo cell - drive power: 2.2 kw - drive voltage: (3 ~) 400/50 V/Hz - Made in Europe - Epoxy paint |
| Options |
Options: - PE7000: 3T pneumatic lifting crossbar - EG8380: pair of turntables - PE0004: front slip plates |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Tension | 240V |
| Product weight | 2,550.00 kg |
| Maximum load (T) | 5.50 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6006M-1 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T PACK. 1/5 1 x PE 6006M-2 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T PACK. 2/5 1 x PE 6006M-3 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T PACK. 3/5 1 x PE 6006M-4 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T PACK. 4/5 1 x PE 6006M-5 - EXTRA LOW PROFILE SCISSOR LIFT 5.5T AUXILIARY LIFT 230V 5.5T PACK. 5/5 |
