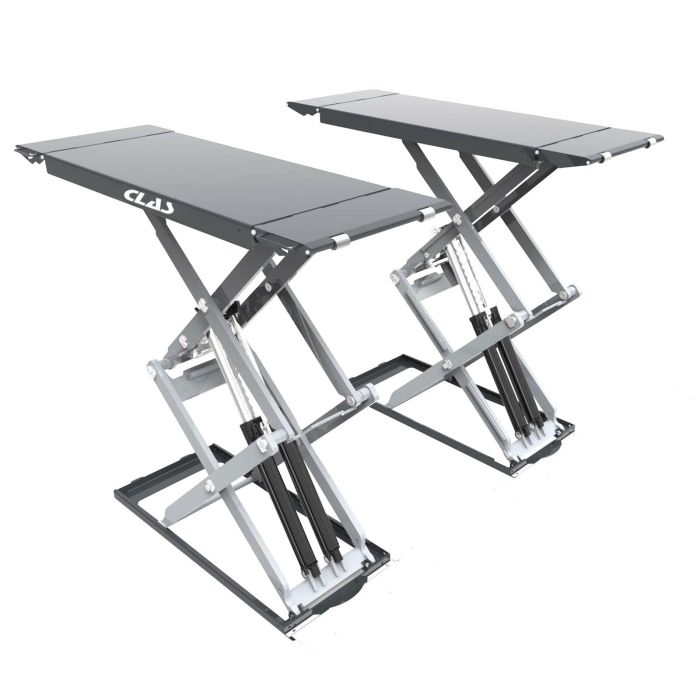

DOUBLE SCISSOR LIFT DUAL CYLINDER 230V 3T
SKU
PE 6001M
Product values
View all features
Especially adapted to painting, bodywork and brake and tyre service activities.
Installation possibilities: floor-standing or floor built-in.
6,550.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | DOUBLE SCISSOR LIFT DUAL CYLINDER 230V 3T |
|---|---|
| EAN code | 3701555307121 |
| Intro |
Especially adapted to painting, bodywork and brake and tyre service activities. Installation possibilities: floor-standing or floor built-in. |
| Text |
Ease of access: 100mm high lowered floor passage, lockable access ramps for extended lifting platforms Up and down control by push buttons on control console Powerful lift: Extended mechanical tilt lever system, for full power lift at the lowest point 100mm Working comfort: scissors control by double hydraulic master-slave system; synchronization control by photocell. |
| Specifications |
Specifications: - lifting height : 100-1950mm - lifting time : +/- 40s - lowering time: +/- 35s - width/length of tracks: 650/1420-2000mm - system synchronization: photo cell - width/length of floor required for installation: 2000/2030mm - drive power: 2.2kW - drive voltage: (3 ~) 400/50 V/Hz - concrete strength/quality: 200mm-C20/25 - maximum safety: double hydraulic safety system (without mechanical lock and compressed air), emergency lowering system in case of power failure, anti-crushing intermediate stop according to CE standards and sound signal - made in Europe |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2200W |
| Tension | 240V |
| Product weight | 840.00 kg |
| Maximum load (T) | 3.00 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature |
1 x PE 6001M-1 - DOUBLE SCISSOR LIFT DUAL CYLINDER 230V 3T PACK. 1/2 1 x PE 6001M-2 - DOUBLE SCISSOR LIFT DUAL CYLINDER 230V 3T PACK. 2/2 |
