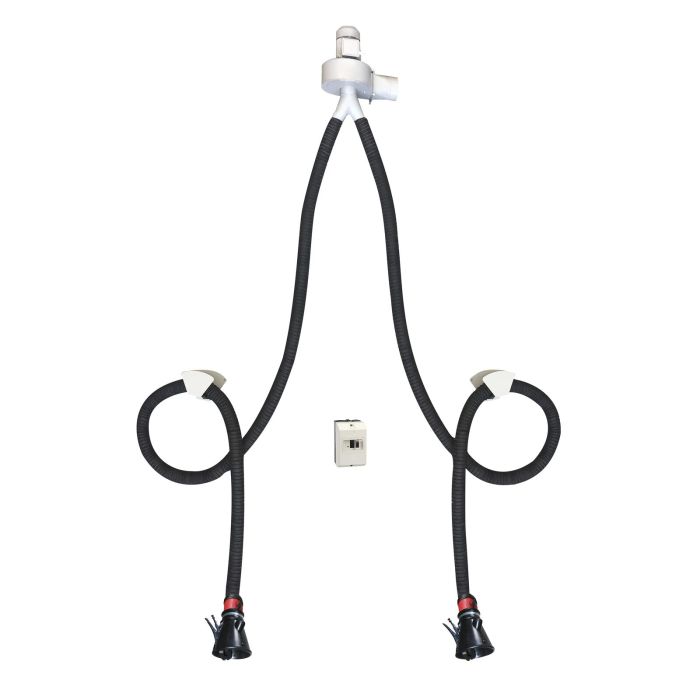

DOUBLE EXTRACTOR GROUP 2x5m Ø100mm 400V
SKU
AG 0022
Product values
View all features
Specially designed for exhaust extraction in light vehicle workshops.
Suitable for wall or roof extraction, depending on accessories.
2,280.00 €
VAT Excl.
€3.90
Characteristics
| Item name | DOUBLE EXTRACTOR GROUP 2x5m Ø100mm 400V |
|---|---|
| EAN code | 3701555301112 |
| Intro |
Specially designed for exhaust extraction in light vehicle workshops. Suitable for wall or roof extraction, depending on accessories. |
| Text | The equipment enables you to work in a healthy environment, without inhaling exhaust fumes and in compliance with workplace safety standards. |
| Product highlight | Easy to install |
| Specifications |
Specifications: - galvanized steel structure - electric engine, statically and dynamically balanced wheel, delivered with wall bracket and rubber funnel - 2x5m of Ø100mm hose (-40° to +200°) made of high temperature EPDM vulcanized fabric on both sides. Completely anti-crushing structure, smooth inside and maintains flexibility over time thanks to the strong nylon spiral with a very tight pitch. This feature prevents the hose from stretching during pulling and from crushing in high stress situations. - delivery: Ø125mm - power supply: 400V Tri - engine powe: 1hp, 0.75KW, 50HZ, 2.9A - max flow: 2x450m3/h - noise level: 66dB - thermal protection switch - rubber exhaust nozzle with watertight valve included in the body of the product, anti-intrusion network, clamp for fixing to the exhaust Many options available, please consult us. |
| Warranty period | 2 years |
| Vehicle type | LV |
| Decibel level | 66.00 dB |
| Tension | 400V |
| Diameter | 100.00 mm |
| Air flow rate | 2X450 |
| Tariff code | Tariff Equipment (TE) |
| Type of gas extraction system | Fixed |
| DPF compatible | NO |
| Hose length (m) | 2 x 5m |
| Hose diameter (mm) | 100mm |
| Max. hose temperature (°C) | 200°C |
