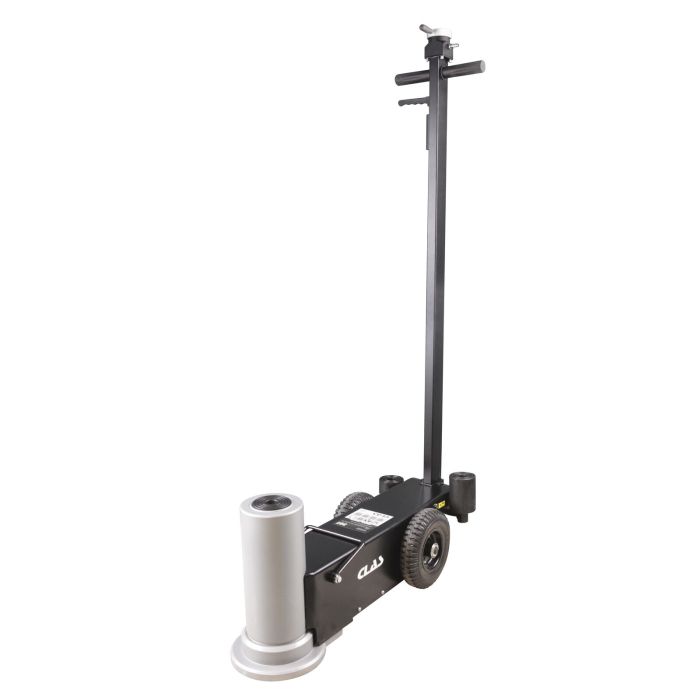

HIGH LIFT AIR HYDRAULIC JACK 30T
SKU
OH 9032N
2,690.00 €
VAT Excl.
Characteristics
| Item name | HIGH LIFT AIR HYDRAULIC JACK 30T |
|---|---|
| EAN code | 3700461496950 |
| Product highlight | Holds full power in high rise |
| Specifications |

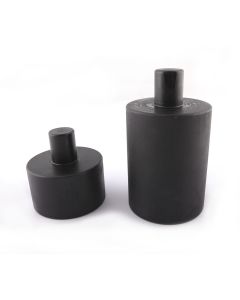

Specifications: - provides quick and effortless lifts - safety overload system - equipped with a speed control descent system for enhanced security - long T-handle to ease jack positioning under vehicle - 3 positions: 90-45-0° with metal locking system - tempered piston for high resistance - min. height: without extension 360mm/with extensions 505mm - max. height: without extension 627mm/with extensions 772mm - length: 840mm - width: 282mm - extensions: 45-100mm - air pressure: 9-12bar - weight: 87kg |
| Applications | Applications: Civil engineering machinery, agricultural machinery, military machinery, trains. |
| Warranty period | 2 years |
| Length | 840.00 mm |
| Width | 282.00 mm |
| Product weight | 87.00 kg |
| Max. height | 772.00 mm |
| Min. height | 360.00 mm |
| Jack type | Hydropneumatic |
| Maximum load (T) | 30.00 T |
| Tariff code | Tariff Normal (TN) |
| Composition of nomenclature |
1 x OH 9032-1 - HIGH LIFT AIR HYDRAULIC JACK 30T 1 x OH 9032-2 - HIGH LIFT AIR HYDRAULIC JACK 30T |
| Warranty Procedure | NO |
