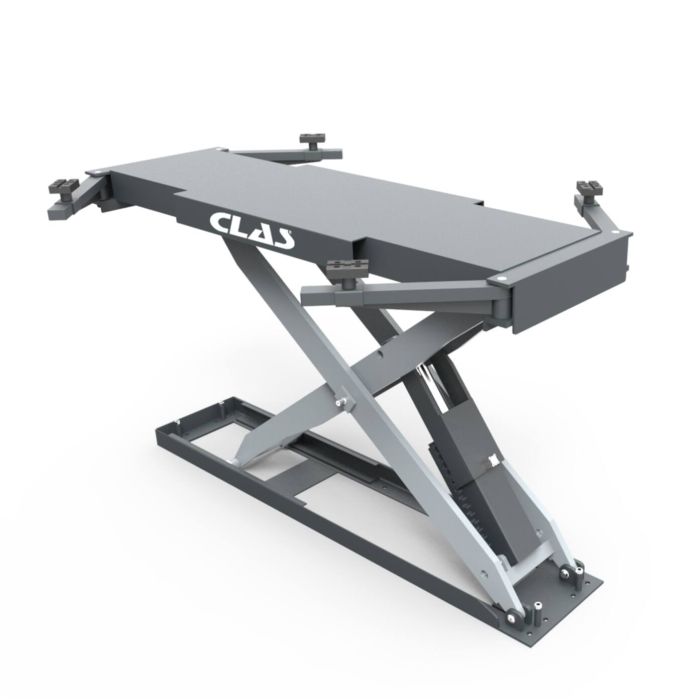

BODY REPAIR LIFT TABLE MONO CYLINDER WITH MECHANIC LOCK 230V 3T
This product is no longer listed with us
Characteristics
Item name | BODY REPAIR LIFT TABLE MONO CYLINDER WITH MECHANIC LOCK 230V 3T |
---|---|
EAN code | 3701555307206 |
Text |
Underbody preparation table for body builders, allows the vehicle to be lifted to the desired height for an ergonomic working position, protects against MSDs. Ideal for small dent removal, work on rocker panels, sanding, painting... To be embedded, electro-hydraulic operation. |
Product highlight | High elevation |
Specifications |
Specifications: - lifting time: +/- 50 s - lowering time: +/- 60 s - working height: 260-1730mm - closed dimension: L. 2348 X W. 700mm - max. open dimension L. 2836 X W. 1610mm - drive power 2.2 kW 220bar - electrical voltage of the drive: (3 ~) 400V/50 Hz - air supply 6/8bar - single-cylinder version, with mechanical hold-in position safety device (rack and pinion). - opening of the 4 arms equipped with 120° buffers - European origin - powder coated hinges - weight: 780kg |
Advice |
Please consult us for installation and commissioning. Under warranty, installation and commissioning must be carried out by a professional. Transport costs not included. |
Warranty period | 2 years |
Power | 2200W |
Tension | 240V |
Product weight | 600.00 kg |
Maximum load (T) | 3.00 T |
Tariff code | Tariff Equipment (TE) |
Composition of nomenclature | 1 x PE 8000M-1 - BODY REPAIR LIFT TABLE MONO CYLINDER WITH MECHANIC LOCK 230V 3T 1/1 |
Customer benefit | Designed for integration into paint booth. |
