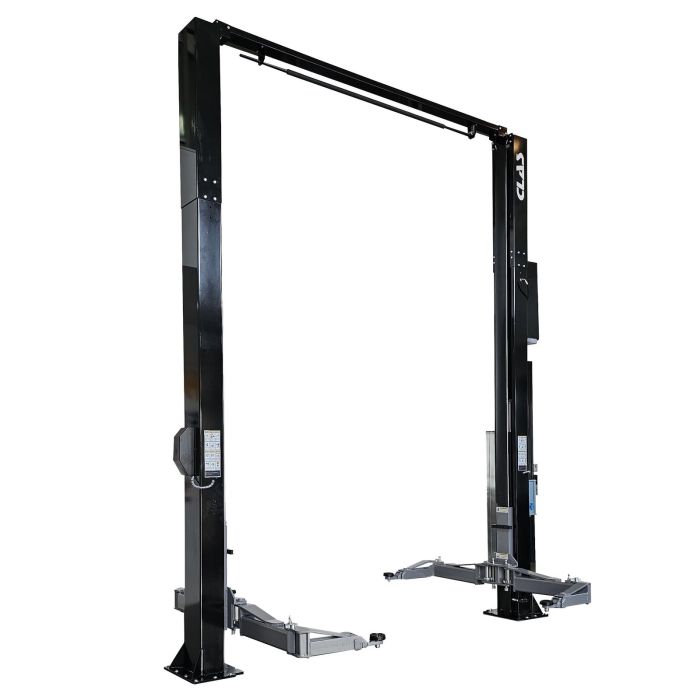

2 COLUMNS POST LIFT HIGH PASSAGE 3.90m 400V 6T 4 ARTICULATED ARMS

SKU

PE 2339T

Product values View all features

Particularly adapted to repair activities on extended utility vehicles, 4x4, micro car. Electro-hydraulic post lift. Pusher cylinder direct on carriage. Arms with adjustable joints. Hose and cable routing from the top for optimum working comfort, allowing free access to equipment under the vehicle (cylinders, oil recuperator, battery removal, etc.), facilitating workshop cleaning. Hydraulic power pack: equipped with a position safety device for precise intervention, gearbox assembly, nut alignment, etc. Multiple lifting capacities thanks to 4 multi-adjustable articulated arms. Cylinder and cable protection strip included on each column.

10,999.00 ^€ ^{VAT Excl.} €66.00

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Characteristics

More Information
Item name	2 COLUMNS POST LIFT HIGH PASSAGE 3.90m 400V 6T 4 ARTICULATED ARMS
EAN code	3701555318035
Text	Particularly adapted to repair activities on extended utility vehicles, 4x4, micro car. Electro-hydraulic post lift. Pusher cylinder direct on carriage. Arms with adjustable joints. Hose and cable routing from the top for optimum working comfort, allowing free access to equipment under the vehicle (cylinders, oil recuperator, battery removal, etc.), facilitating workshop cleaning. Hydraulic power pack: equipped with a position safety device for precise intervention, gearbox assembly, nut alignment, etc. Multiple lifting capacities thanks to 4 multi-adjustable articulated arms. Cylinder and cable protection strip included on each column.
Product highlight	6T capacity Multi-position arm
Specifications	Specifications: - lifting height: 95-1850mm - lifting time: +/- 50s - lowering time: +/- 30s - drive power: 2.2kW - drive voltage: 400V/50 V/Hz - adjustable screw buffers, stroke 70-140mm - electrical release of safety catches - emergency lowering system in the event of power failure - system synchronization: by cable - intermediate stop 20 cm above ground for user safety and anti-crushing audible signal - engine protection - door protection on columns - 230V electrical socket on electrical box - protective strip for cylinder and cables included on each column - supplied with 4x70mm risers and brackets - Epoxy paint
Advice	Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus.
Warranty period	2 years
Power	2200W
Tension	400V
Length	4,000.00 mm
Height	3,900.00 mm
Max. height	1,850.00 mm
Min. height	95.00 mm
Drive through width	3,190.00 mm
Maximum load (T)	6.00 T
Tariff code	Tariff Equipment (TE)
Composition of nomenclature	1 x PE 2340 - 2 COLUMNS HIGH PASSAGE 400V 6T WITHOUT ARMS 1 x PE 2355T - ENGINE BLOC 2 COLUMNS POST LIFT 6T 1 x PE 2341 - PAIR OF ARTICULATED ARMS FOR 6T 1 x PE 2342 - 2 COLUMNS POST LIFT HIGH PASSAGE 6T 2 x SA 3012 - HV46 HYDRAULIC OIL 5L
Warranty Procedure	INTERVENTION
Customer benefit	Delivered with 46V hydraulic oil
Disjoncteur/Section de câble	10A D / 5x2.5mm2

After sales service & consumables

NEW

SA 4600 TWO POST LIFT BUFFER VALVE

30.00 ^€ ^{VAT Excl.}
NEW

SA 4601 TWO POST LIFT SINGLE WAY VALVE

60.00 ^€ ^{VAT Excl.}
NEW

SA 4604 TWO POST LIFT PUMP STATION OVERFLOW VALVE

50.00 ^€ ^{VAT Excl.}
NEW

SA 4605 ELECTROMAGNETIC RETURN VALVE

110.00 ^€ ^{VAT Excl.}
NEW

SA 4611 BALANCE CABLE WHEEL

14.00 ^€ ^{VAT Excl.}
NEW

SA 4621 2 POST LIFT MOTOR (400V)

450.00 ^€ ^{VAT Excl.}
NEW

SA 4622 2 POST LIFT MOTOR (230V)

450.00 ^€ ^{VAT Excl.}
NEW

SA 4623 ELECTRIC UNLOCKING MAGNET

107.00 ^€ ^{VAT Excl.}
NEW

SA 4624 TUBING 3-WAY

7.00 ^€ ^{VAT Excl.}
NEW

SA 4625 TRAY RUBBER PAD

7.00 ^€ ^{VAT Excl.}
NEW

SA 4626 SLIDING BLOCK FOR PULLEY

9.00 ^€ ^{VAT Excl.}
NEW

SA 4627 TWO POST LIFT PUMP STATION GEAR PUMP

117.00 ^€ ^{VAT Excl.}
NEW

SA 4629 OIL CYLINDER

430.00 ^€ ^{VAT Excl.}
NEW

SA 4631 OIL CYLINDER SEALING RING GROUP

40.00 ^€ ^{VAT Excl.}
NEW

SA 4632 WIRE ROPE FOR BALANCE (3.9M LIFT) 10000MM

130.00 ^€ ^{VAT Excl.}
NEW

SA 4633 OIL PIPE 4 (5.4M FOR 3.9M HEIGHT)

120.00 ^€ ^{VAT Excl.}
NEW

SA 4634 BEAM LIMIT SWITCH/SECOND TIME LOWERING LIMIT SWITCH

24.00 ^€ ^{VAT Excl.}
NEW

SA 4635 TOP LIMIT SWITCH ON THE POST

30.00 ^€ ^{VAT Excl.}
NEW

SA 4638 BUTTON/BUTTON（SINGLE WAY CONNECTION)

10.00 ^€ ^{VAT Excl.}
NEW

SA 4654 DIRECT CONNECTION

7.00 ^€ ^{VAT Excl.}
NEW

SA 4670 TWO POST LIFT PUMP STATION THROTTLE ROD

9.00 ^€ ^{VAT Excl.}
NEW

SA 4674 CONTROL BOARD (PCB)

177.00 ^€ ^{VAT Excl.}
NEW

SA 4689 SAFETY HOOK

34.00 ^€ ^{VAT Excl.}
NEW

SA 4690 WHOLE SET OF CONTROL BOX（400V）

500.00 ^€ ^{VAT Excl.}
SA 4692 GUIDE WHEEL FOR BALANCING CABLE

14.00 ^€ ^{VAT Excl.}
NEW

SA 4694 SAFETY COVER

20.00 ^€ ^{VAT Excl.}
NEW

SA 4698 CONTACTOR

37.00 ^€ ^{VAT Excl.}
NEW

SA 4706 TRANSFORMER (400V）

177.00 ^€ ^{VAT Excl.}
NEW

SA 4722 INDICATOR

7.00 ^€ ^{VAT Excl.}
NEW

SA 4734 PUMP MOTOR COUPLING

10.00 ^€ ^{VAT Excl.}
NEW

SA 4736 LONG OIL PIPE JOINT/OIL CYLINDER CONNECTOR

9.00 ^€ ^{VAT Excl.}
NEW

SA 4738 COIL OF ELECTROMAGNETIC RETURN VALVE

25.00 ^€ ^{VAT Excl.}
NEW

SA 4740 OIL PIPE 1 (3.47M)

80.00 ^€ ^{VAT Excl.}
NEW

SA 4741 OIL PIPE 2 (0.8M)

34.00 ^€ ^{VAT Excl.}
NEW

SA 4742 OIL PIPE 3 (2.4M）

64.00 ^€ ^{VAT Excl.}
NEW

SA 4766 TOP LIMIT SWITCH OF FIRST LEVEL/SECOND TIME LOWERING LIMIT SWITCH

30.00 ^€ ^{VAT Excl.}
NEW

SA 4807 CAP FOR TWO POST LIFT PUMP STATION

10.00 ^€ ^{VAT Excl.}
NEW

SA 4808 WIRE ROPE FOR BALANCE (4.6M LIFT) 11400MM

140.00 ^€ ^{VAT Excl.}
NEW

SA 4809 WIRE ROPE FOR BALANCE (5.1M LIFT) 12400MM

150.00 ^€ ^{VAT Excl.}
NEW

SA 4837 EXTENSION+THREE-SECTION ROTARY TRAY+TRAY RUBBER PAD+TRAY SCREW

64.00 ^€ ^{VAT Excl.}
