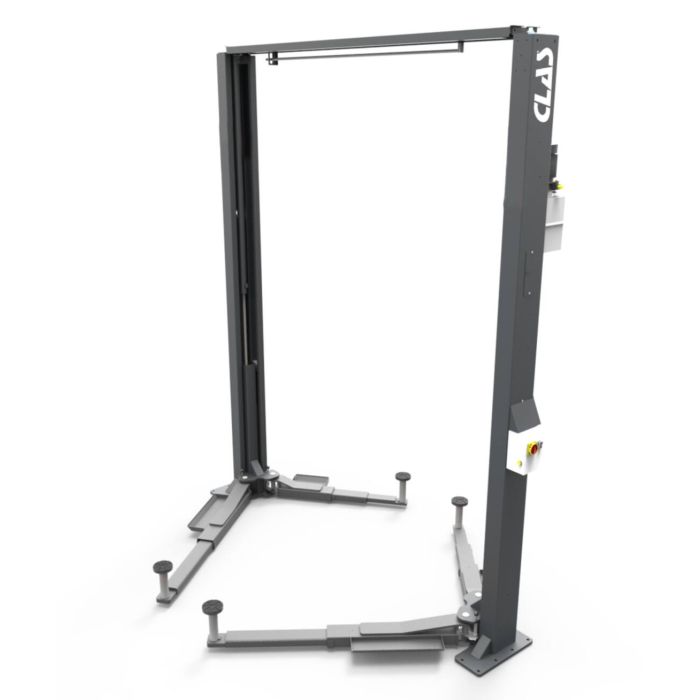

2 COLUMNS POST LIFT 400V 4T HIGH PASSAGE 5070mm 2.6kw
SKU
PE 2009T
Product values
View all features
Electro-hydraulic post lift.
Hoses and cables pass through the top for optimum working comfort, allowing free access under the vehicle for equipment (cylinders, oil recovery system, etc.), making it easier to clean the workshop.
Multiple lifting capacities thanks to the telescopic arms in asymmetrical version (front short 3 stages from 640 to 1200mm, rear long 2 stages from 775 to 1550mm ) allowing a precise lifting of low or utility vehicles.
9,600.00 €
VAT Excl.
€66.00
This product is no longer listed with us
Characteristics
| Item name | 2 COLUMNS POST LIFT 400V 4T HIGH PASSAGE 5070mm 2.6kw |
|---|---|
| EAN code | 3701555306995 |
| Text |
Electro-hydraulic post lift. Hoses and cables pass through the top for optimum working comfort, allowing free access under the vehicle for equipment (cylinders, oil recovery system, etc.), making it easier to clean the workshop. Multiple lifting capacities thanks to the telescopic arms in asymmetrical version (front short 3 stages from 640 to 1200mm, rear long 2 stages from 775 to 1550mm ) allowing a precise lifting of low or utility vehicles. |
| Product highlight | Height adjustable to the millimeter |
| Specifications |
Specifications: - lifting height: 65-1980mm - lifting time: +/- 40s - lowering time: +/- 40s - drive power: 2.6 kw - electrical voltage of the drive: (3~) 400/50 V/Hz - strength/quality of concrete: 200mm-C20/25 - adjustable pads on 55mm stroke screw (+ 70mm and 160mm extension) - electromagnetic unlocking of the safety notches - overload safety and hose rupture - bevelled columns for large door openings - hydraulic synchronization system - made in Europe - Epoxy painting |
| Options |
Options : - PE0007: Mercedes/Iveco 105-135mm extension sets |
| Advice |
Installation et mise en service, nous consulter. Dans le cadre de la garantie, l'installation et la mise en service doivent être effectuées par un professionnel. Frais de transport non inclus. |
| Warranty period | 2 years |
| Power | 2600W |
| Tension | 400V |
| Product weight | 720.00 kg |
| Max. height | 4,470.00 mm |
| Maximum load (T) | 4.00 T |
| Tariff code | Tariff Equipment (TE) |
| Composition of nomenclature | 1 x PE 2009T-1 - 2 COLUMNS POST LIFT 400V 4T HIGH PASSAGE 5070mm 2.6kw PACK. 1/1 |
